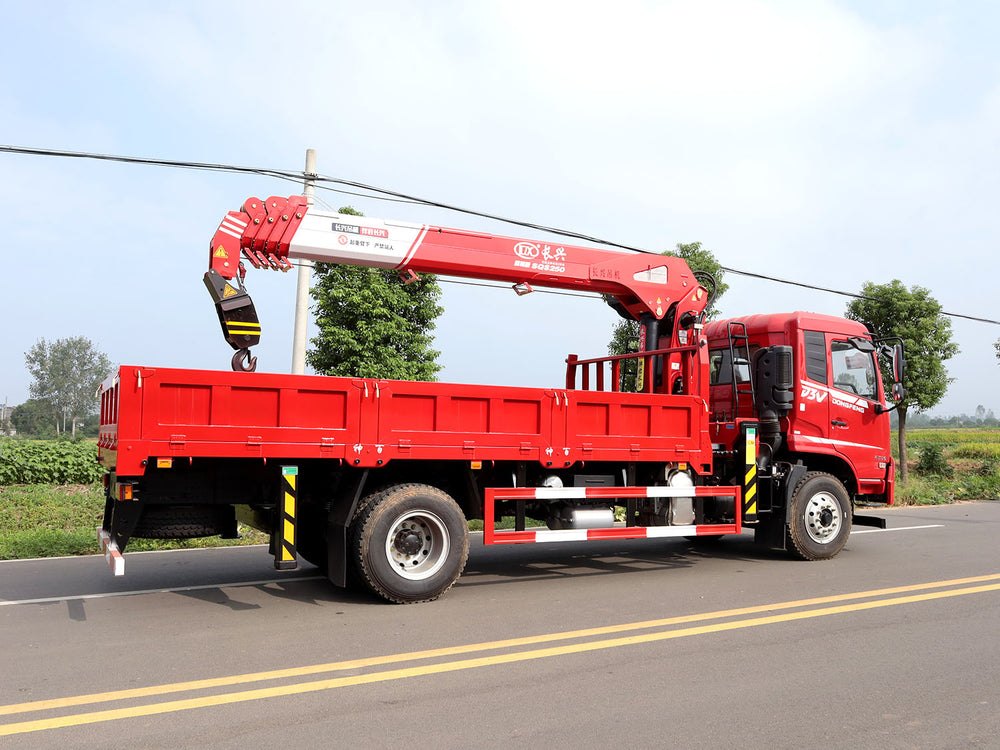

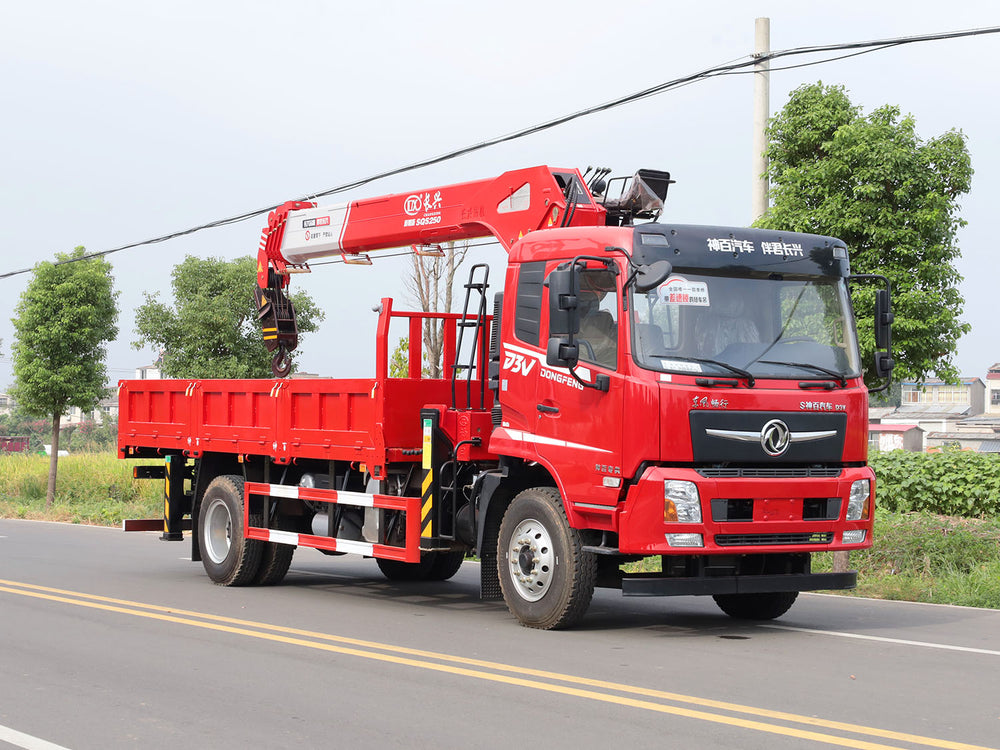

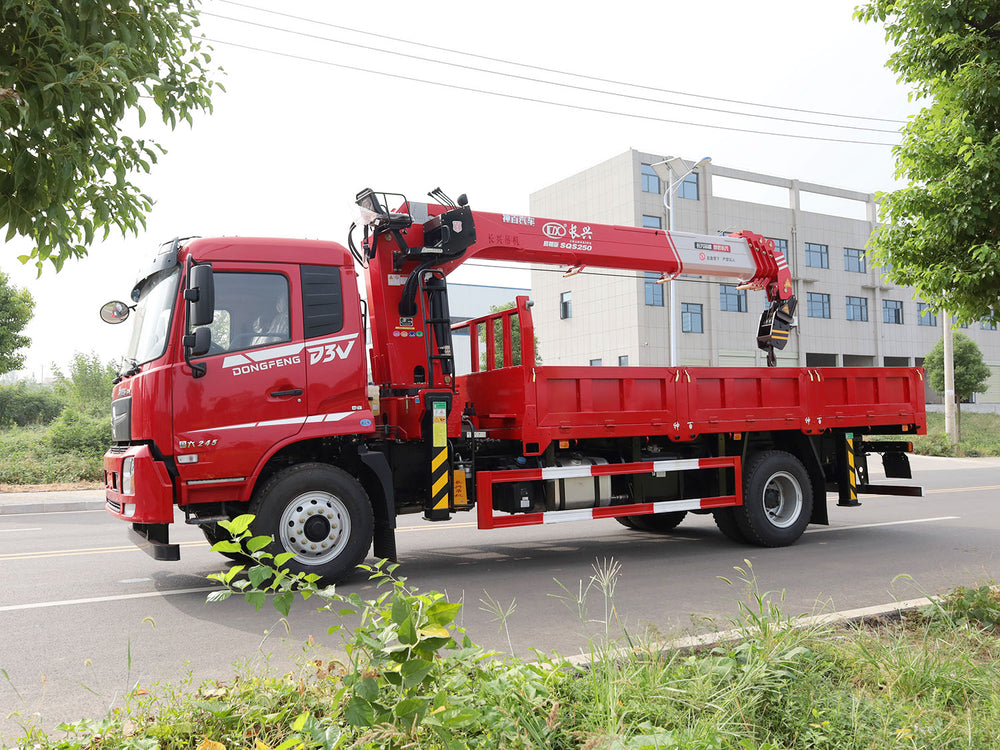

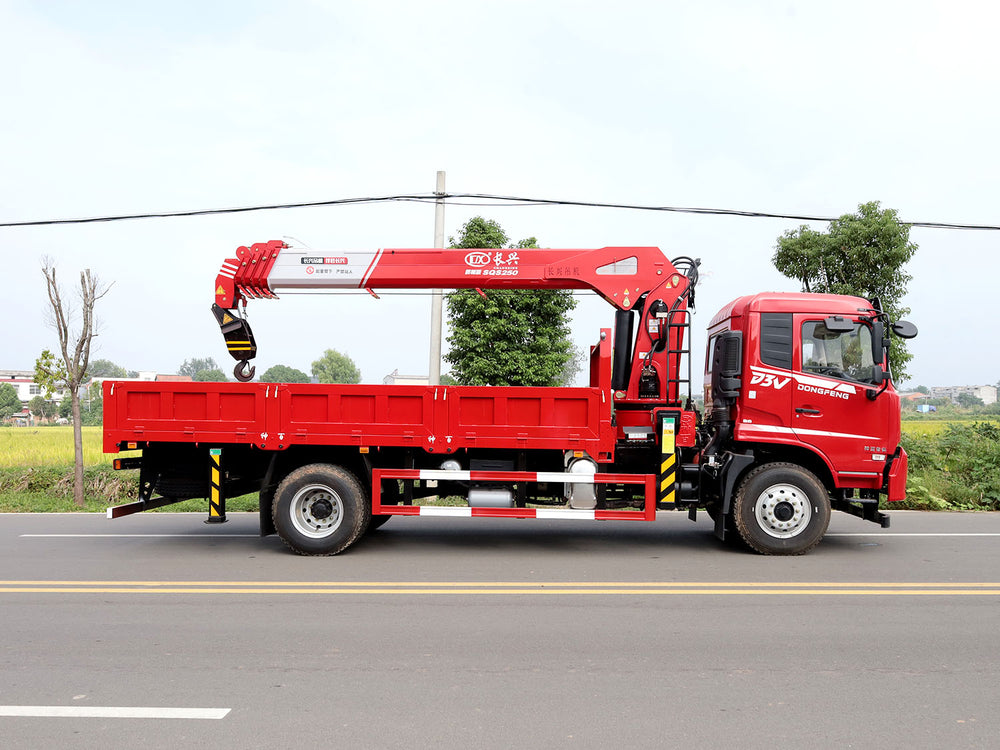

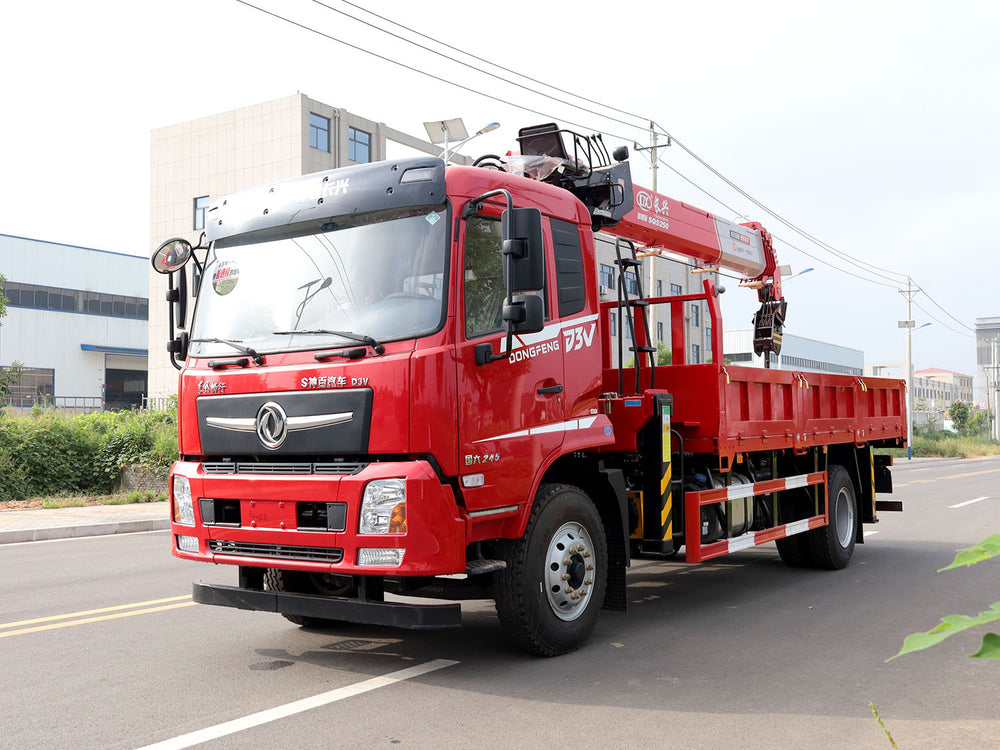

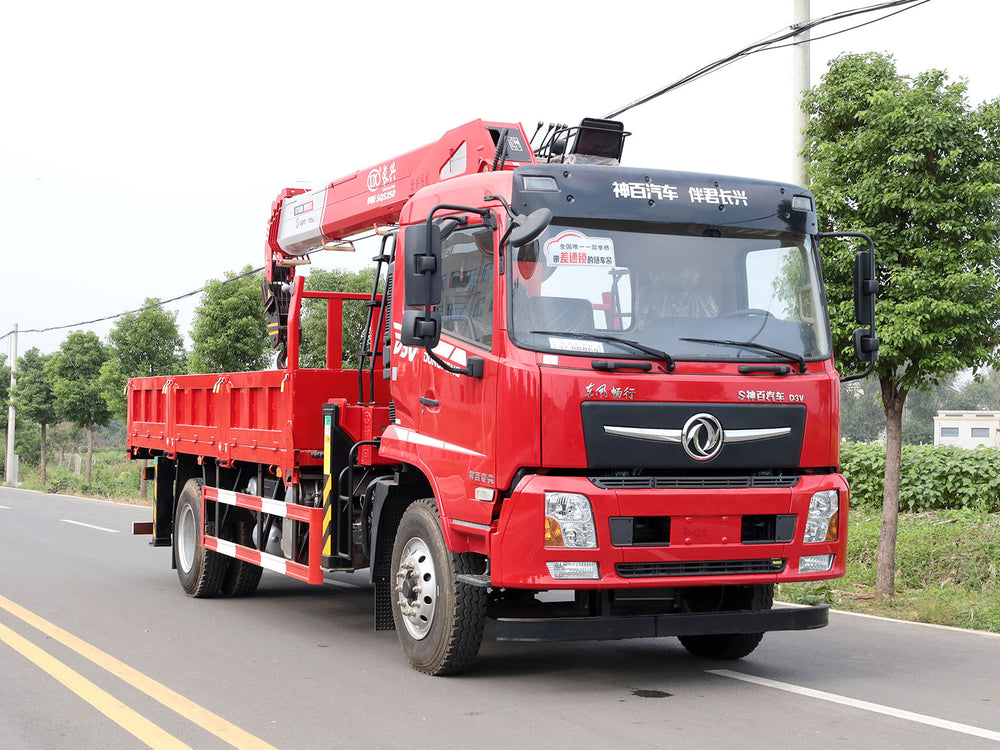

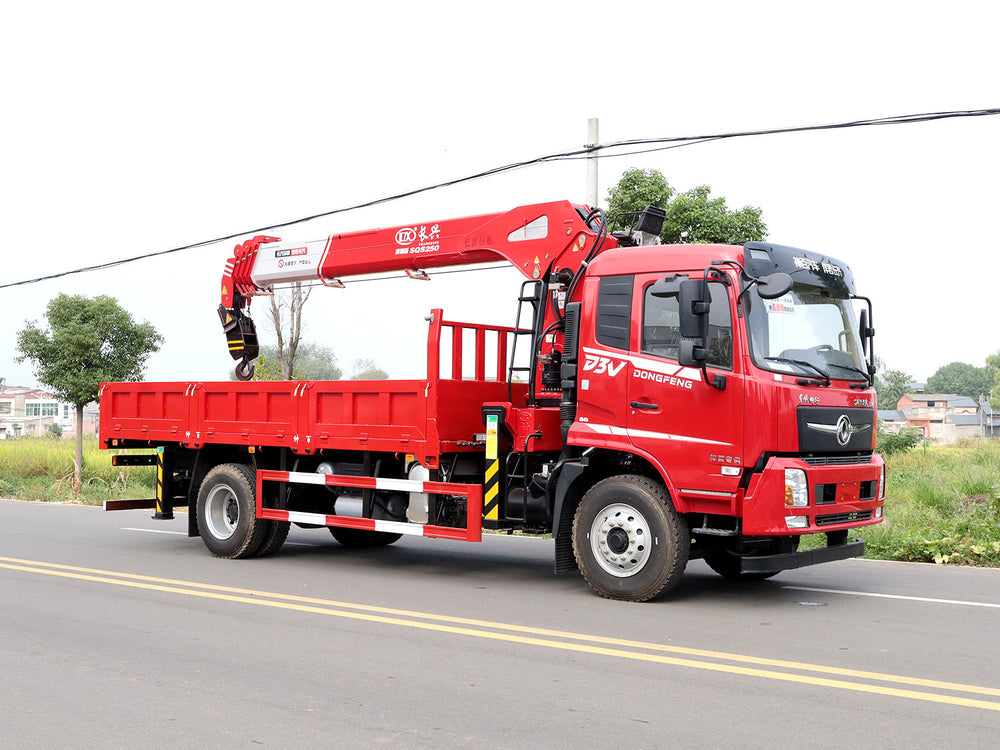

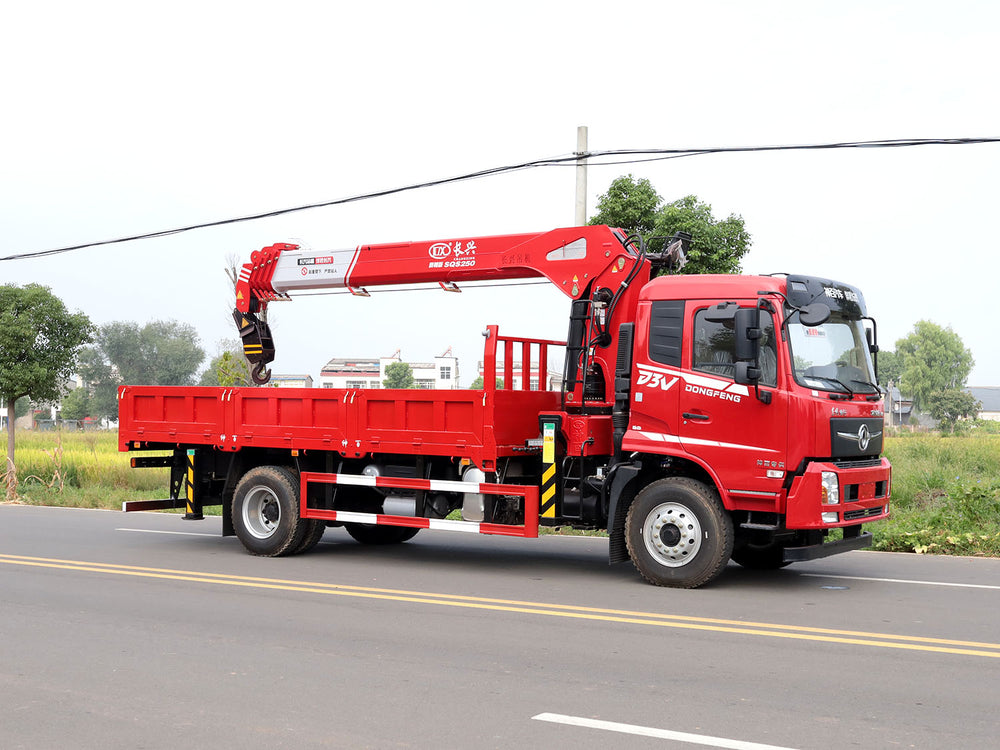

Dongfeng Changxing D3V Superior Edition 10-ton Straight Boom Truck Crane

Overall vehicle size and performance
Total vehicle weight	18000kg
curb weight	1200kg
Rated effective load	6000kg
Overall vehicle dimensions	9000×2550×3680mm
Cargo box dimensions	5600×2450×550mm
Chassis parameters
Chassis Brand	Dongfeng 4X2
Driving type	left-hand drive
engine	YC6A245-50
horsepower	245 Horsepower
Speed gearbox	Fast 8 gears
wheelbase	5100 mm
axis	5 Ton/10 Ton
Emission standards	Euro 6
Tire type and size	10.00R20 18PR
fuel tank	200 Liters
Top speed	89km/h
other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing SQS250-5
Maximum lifting capacity	10 Tons
Maximum working radius	18.5m
Maximum lifting height	20.1m
boom type	5-section Straight Boom
Rotation angle	360° rotation
Crane weight	5000kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
