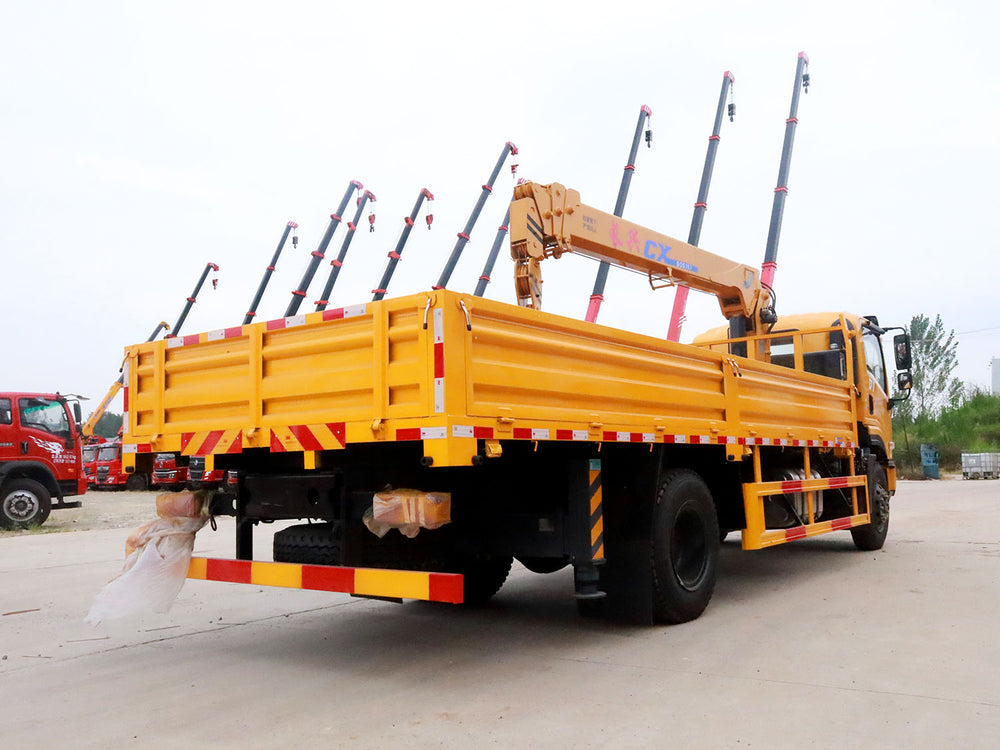

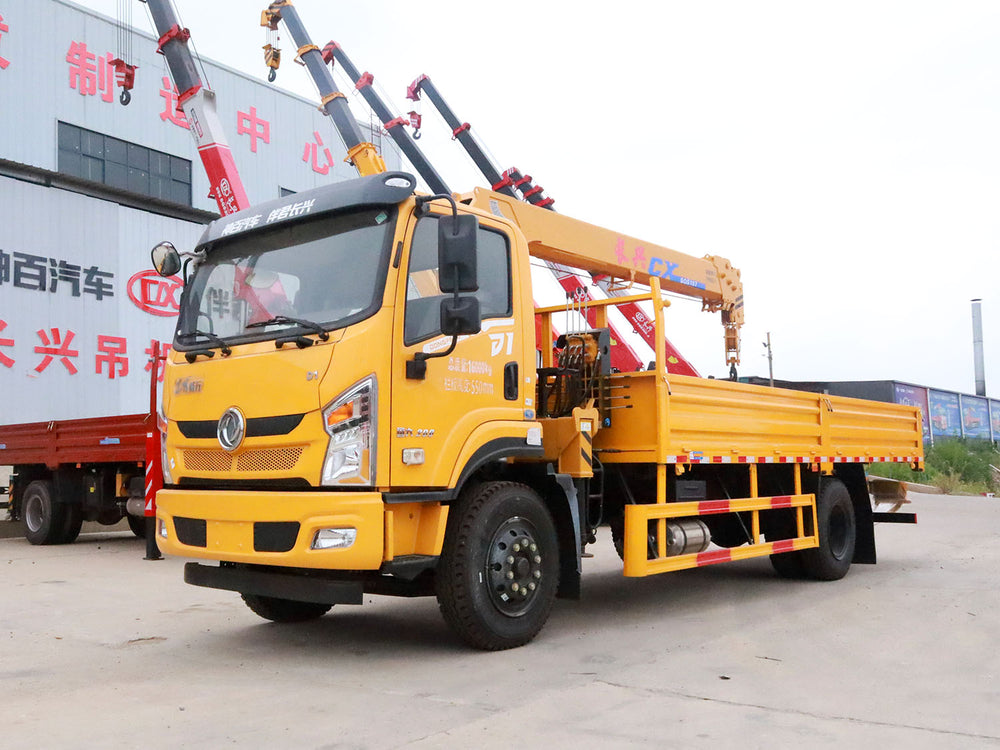

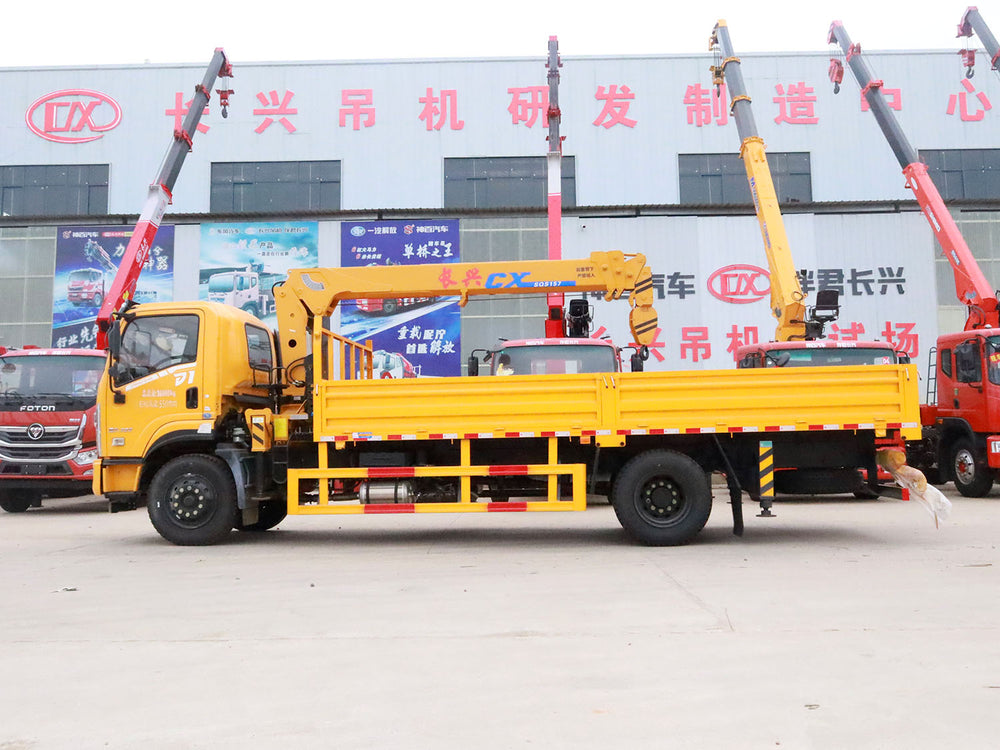

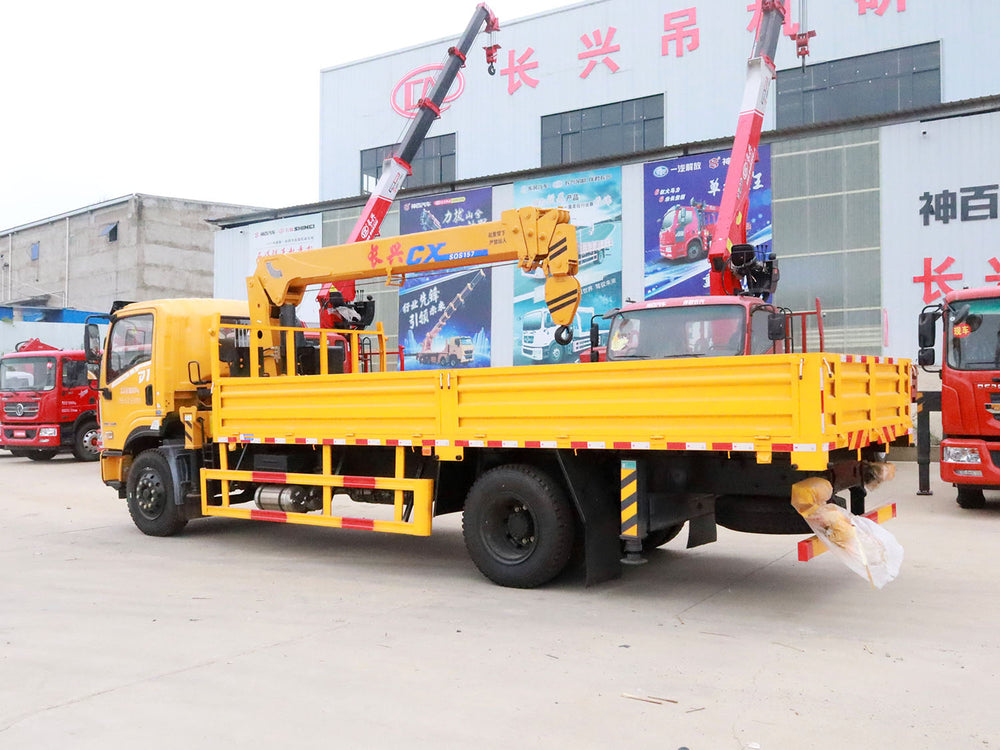

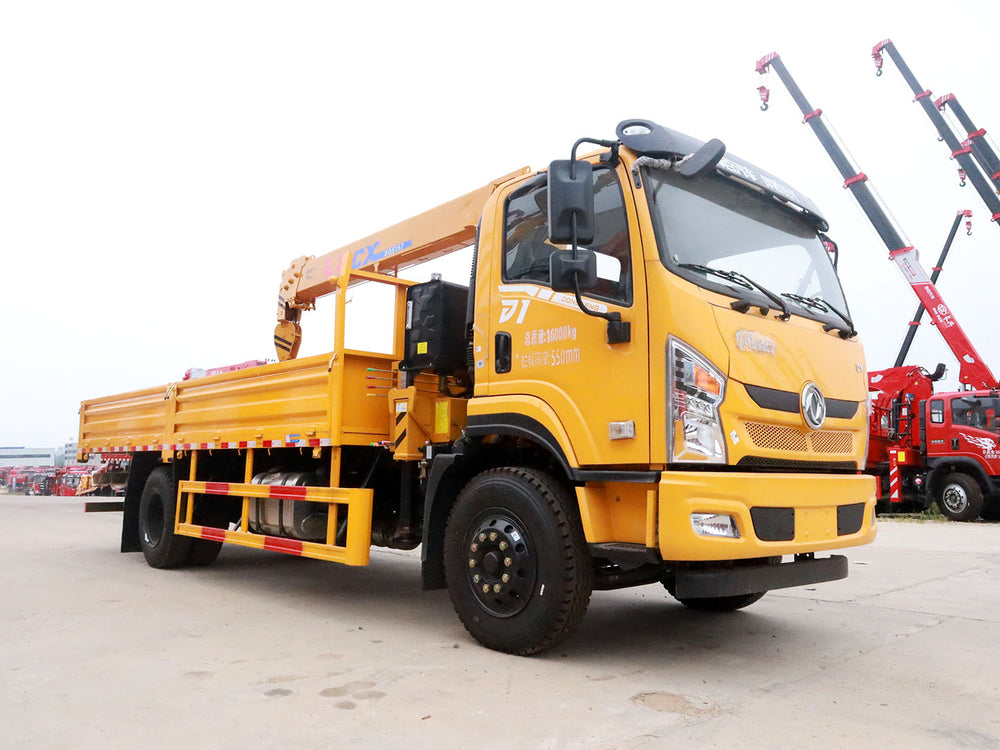

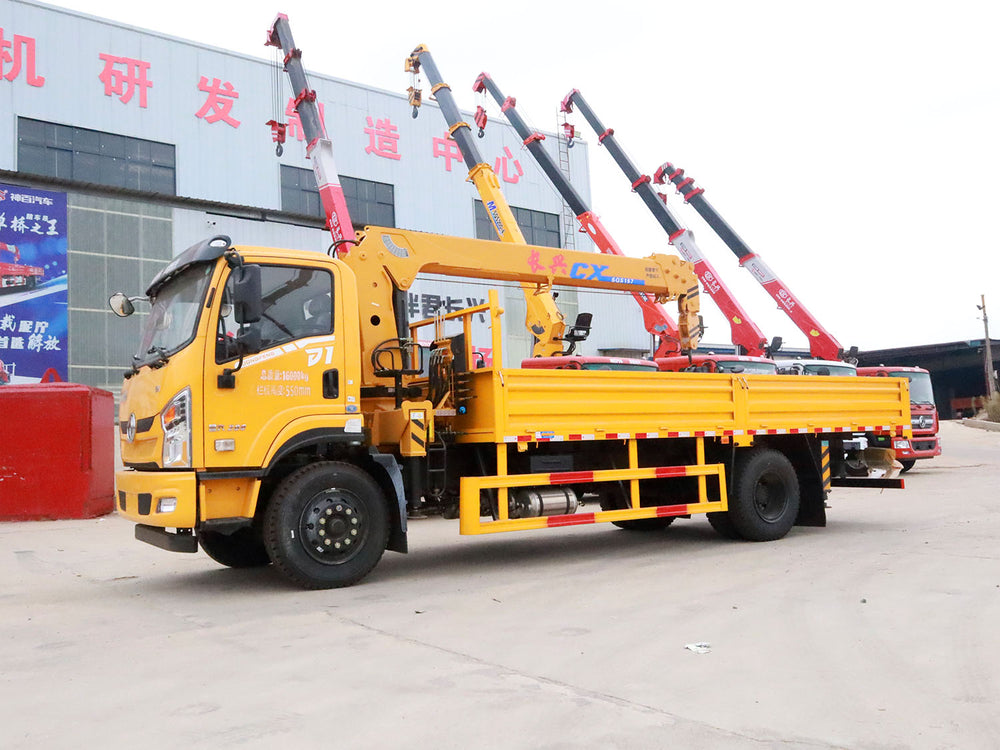

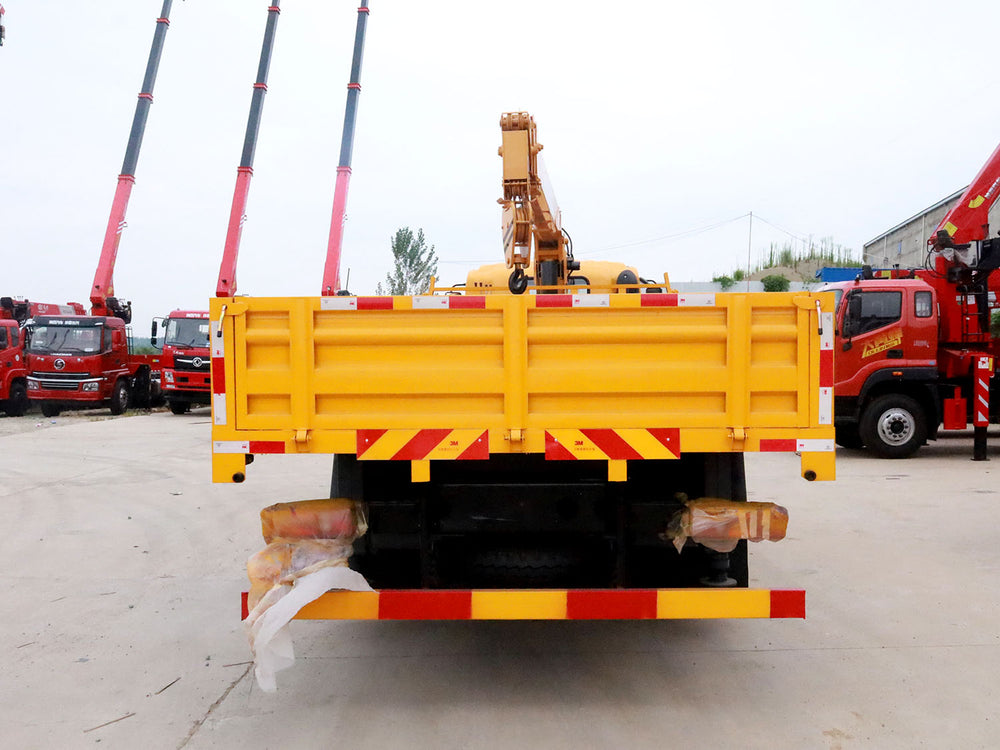

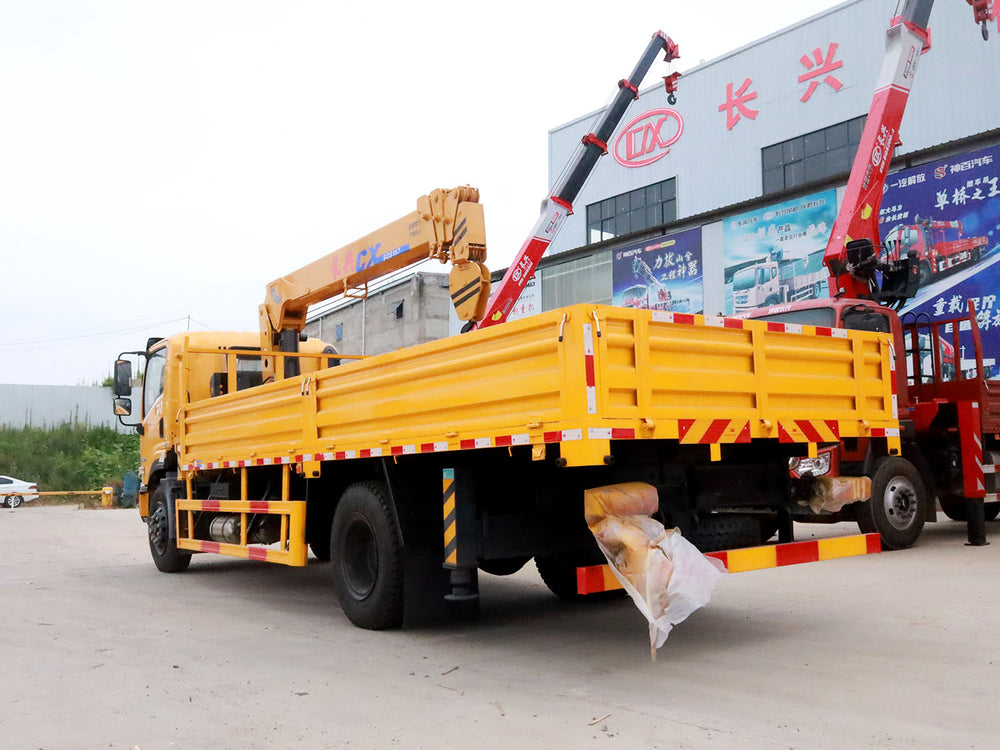

Dongfeng Changxing D1 6.3-ton straight boom crane

1 / 8

Dongfeng Changxing D1 6.3-ton straight boom crane

Overall vehicle size and performance
Total vehicle weight	16000kg
curb weight	10700kg
Rated effective load	5300kg
Overall vehicle dimensions	8300×2550×3550 mm
Cargo box dimensions	5100×2450×550 mm
Chassis parameters
Chassis Brand	Dongfeng 4X2
Driving type	left-hand drive
engine	YCS04180‑68
horsepower	180 Horsepower
Speed gearbox	Fast Gear Small 8
wheelbase	4500 mm
axis	5 Ton/10 Ton
Emission standards	Euro 6
Tire type and size	9.00R20 18PR
fuel tank	200 Liters
Top speed	100km/h
other	German MAN Body、Main Airbag Seat、Middle Seat、Four-point Suspension、Automatic Air Conditioner、Central Lock、Electric Windows、Remote Key、Multi-function Steering Wheel、Cruise Control
Crane parameters
Crane Model	Changxing SQS157‑4
Maximum lifting capacity	6.3 Tons
Maximum working radius	11.5m
Maximum lifting height	13.5m
boom type	4-section Straight Boom
Rotation angle	360° rotation
Crane weight	2800kg
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
