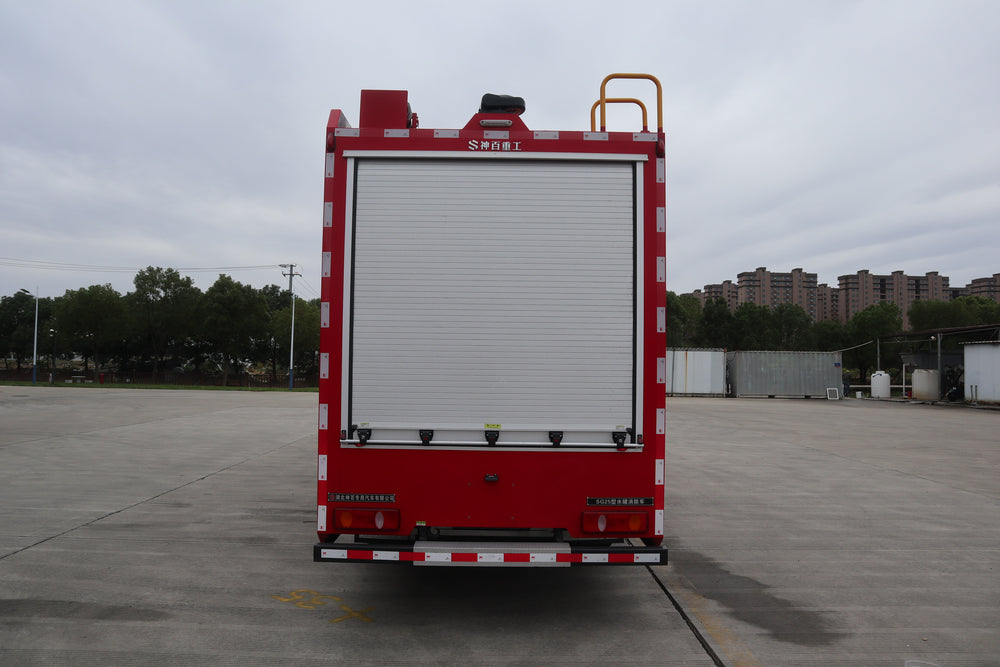

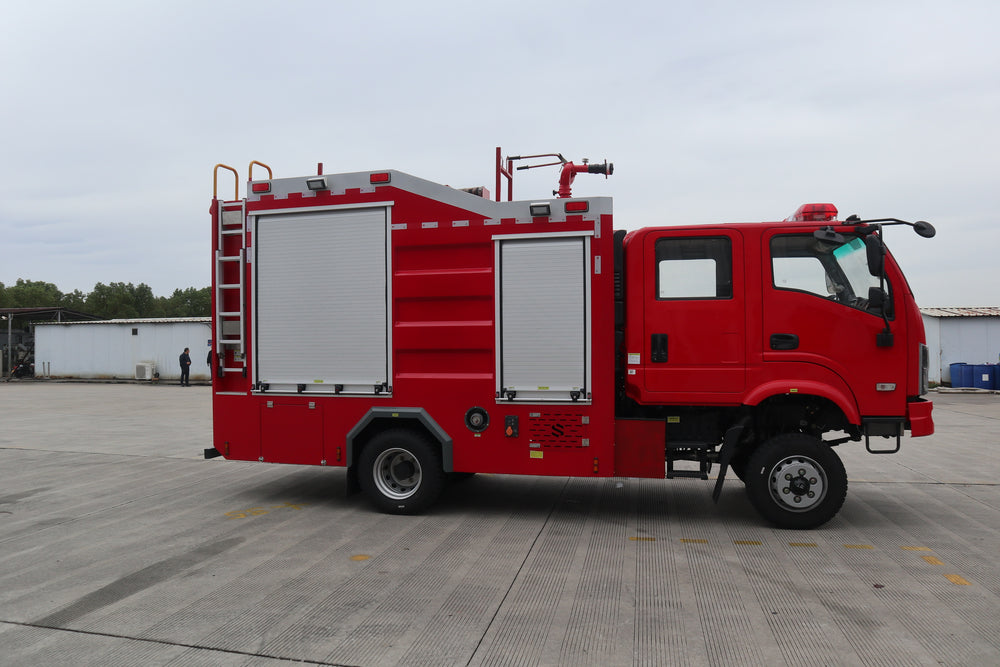

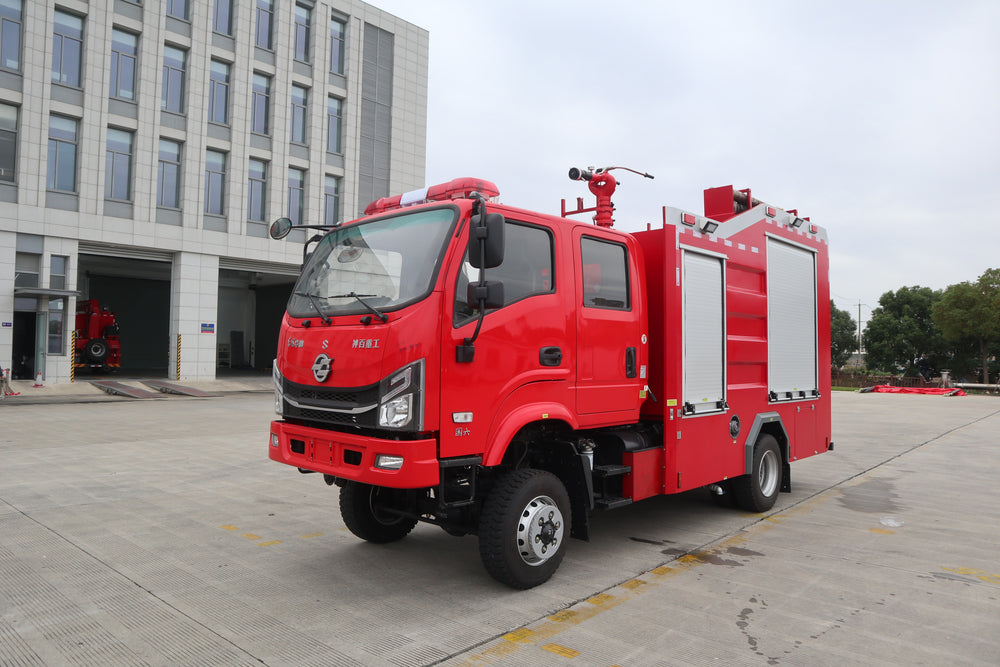

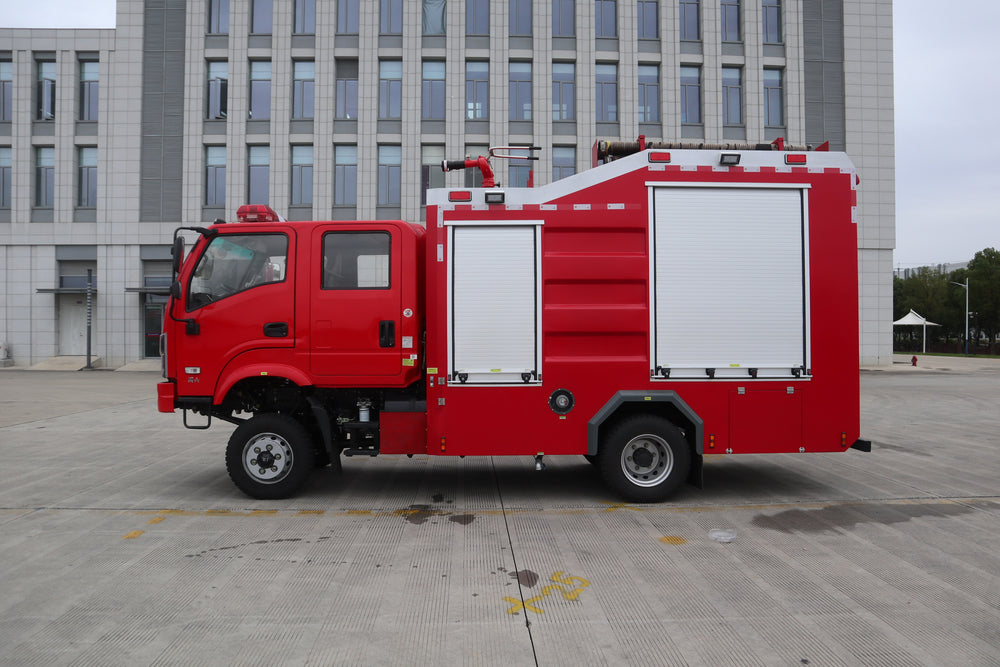

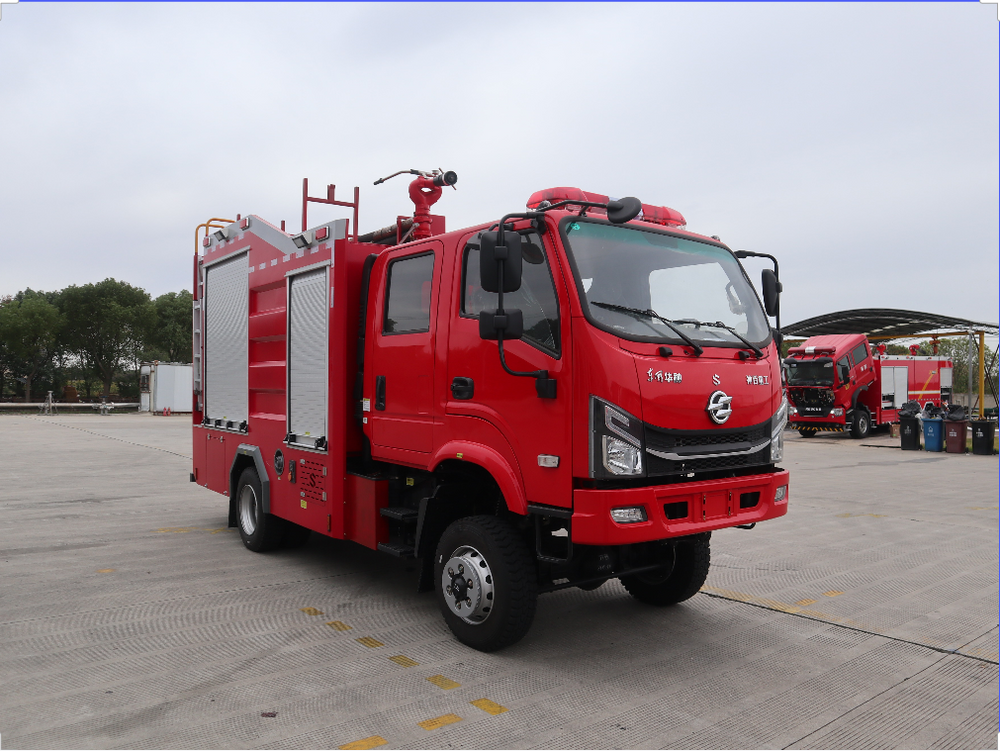

Dongfeng 4WD pipeline forest fire truck

1 / 5

1. Basic vehicle parameters
Chassis Brand	Dongfeng
Total vehicle weight	11000kg
curb weight	6200kg
Rated water capacity	6600kg
Overall vehicle dimensions	6500×2200×2900mm
Top speed	90 km/h
2. Basic parameters of the chassis
Driver type	4x4, left-hand drive
Engine Model	YC4A160-60
horsepower	160HP /118kW
gearbox	Wanliyang 6MT
Front axle/Rear axle	3.5tons /7tons
wheelbase	3400mm
Tire specifications	235/75R17.5 16PR off-road tubeless tire
Emission standards	Euro 6
3. Basic parameters of the upper part
Water tank capacity	6600L
Water tank material	4mm carbon steel, internal anti-corrosion treatment, orange-vein paint finish.
Fire pump rated flow	30L/s
Fire pump rated pressure	1.0MPa
Fire monitor rated flow	30L/s
Fire monitor rated pressure	0.8MPa
Fire monitor range	≥55m (DC/Spray dual-purpose)
Fire monitor rotates horizontally	360°, Pitch: -75° to +75°
Sprinkler System Front Spray	Wide-area high-pressure flushing, range ≥15m
Sprinkler System Rear Spray	Fan-shaped spray, width ≥8m
Water Pump	65QZB-50/110, self-priming and self-draining
Standard equipment	Fire hoses, axes, fire extinguishers, breaching tools, long row of warning lights, loudspeakers, flashing lights, and rear tow hooks.
