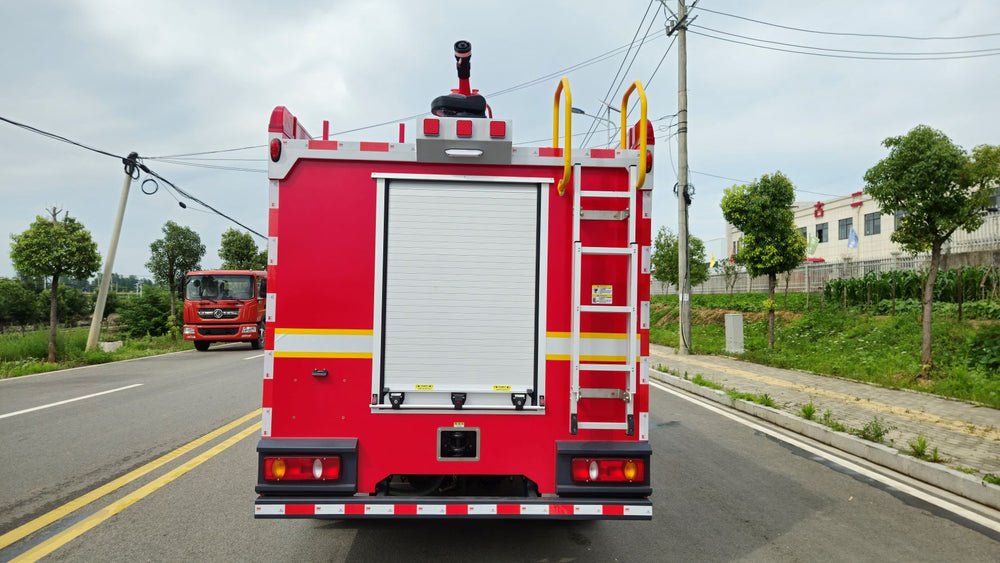

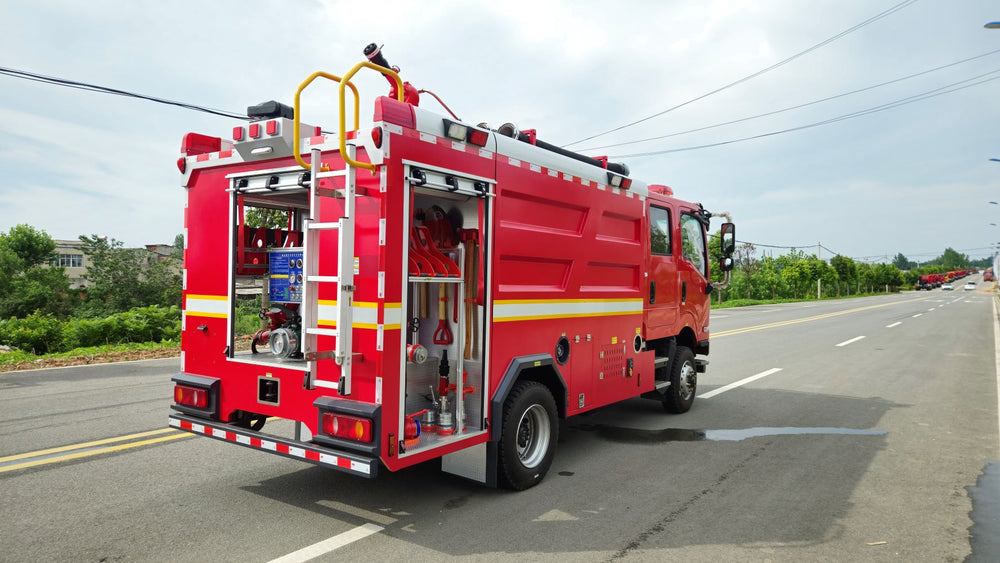

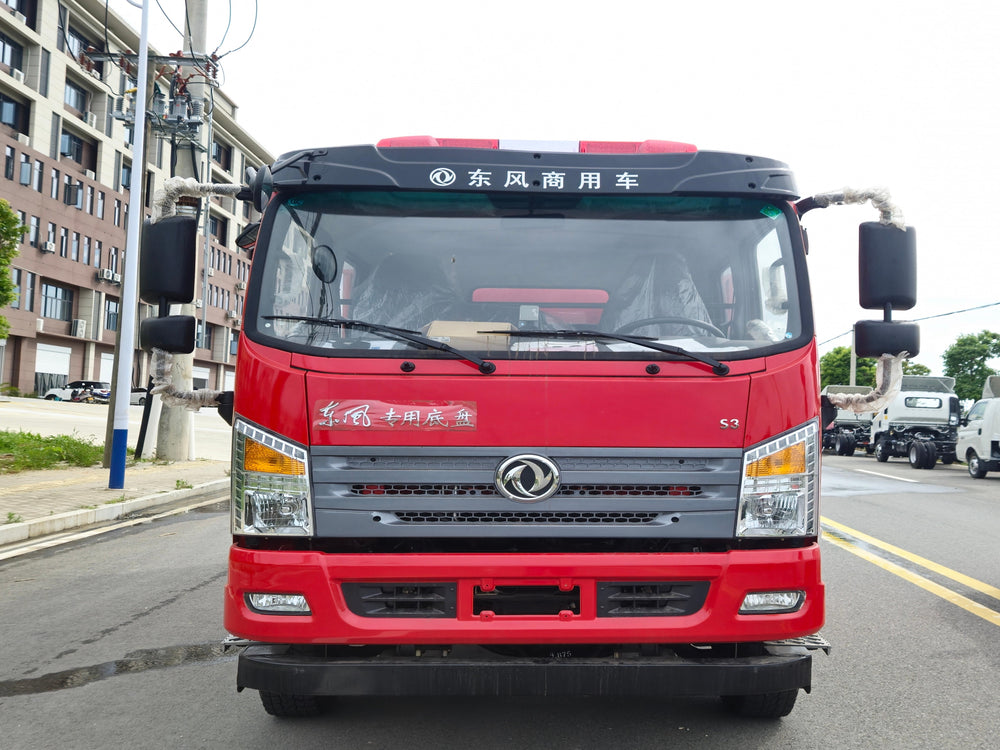

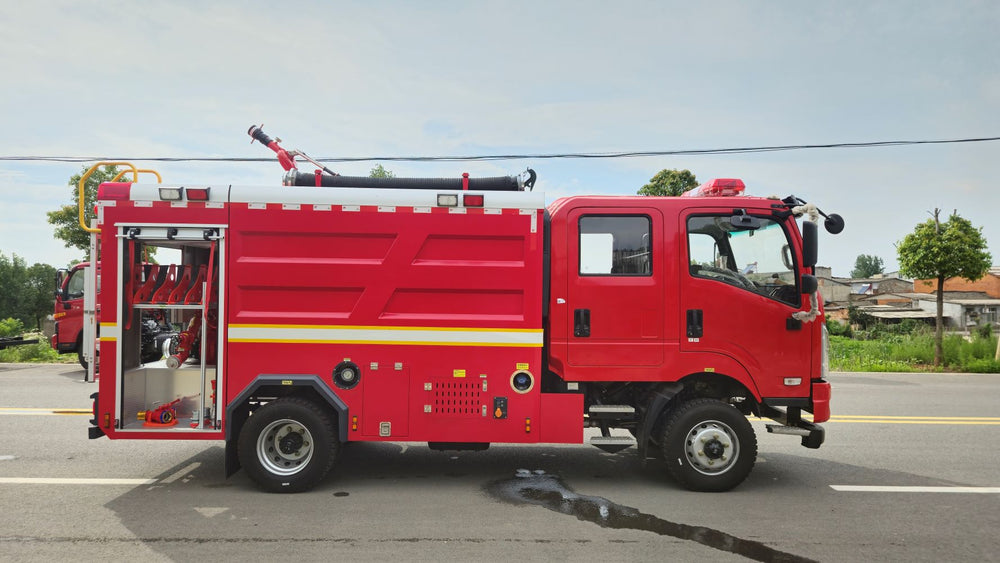

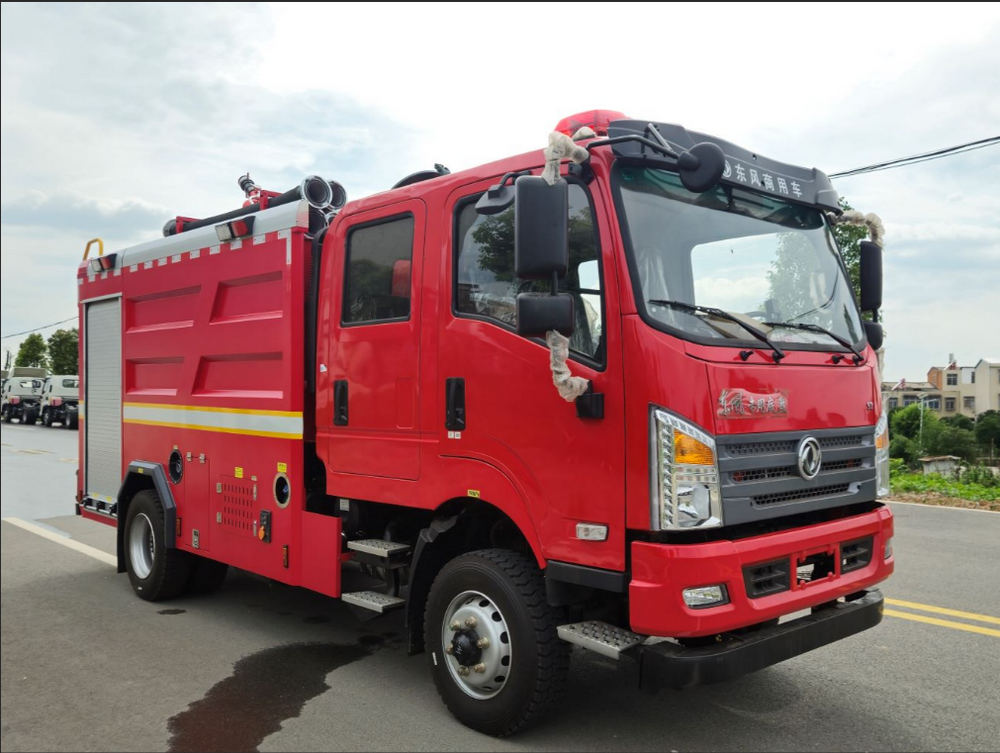

Dongfeng 4WD 5-cubic-meter water tanker fire truck
Dongfeng 4WD 5-cubic-meter water tanker fire truck
1. Basic vehicle parameters |
|
Chassis Brand |
Dongfeng |
Total vehicle weight |
10450kg |
curb weight |
5600kg |
Rated water capacity |
5000kg |
Overall vehicle dimensions |
6280×2120×2950mm |
Top speed |
85 km/h |
2. Basic parameters of the chassis |
|
Driver type |
4x4, left-hand drive |
Engine Model |
Yuchai YCF25160-66B |
horsepower |
160HP / 116kWkW |
gearbox |
Mechanic 5MT |
Front axle/Rear axle |
3 tons / 8 tons |
wheelbase |
3600mm |
Tire specifications |
235/75R17.5 16PR |
Emission standards |
Euro 6 |
3. Basic parameters of the upper part |
|
Water tank capacity |
5000L |
Water tank material |
5mm carbon steel, internal anti-corrosion treatment, orange-vein paint finish. |
Fire pump rated flow |
40L/s |
Fire pump rated pressure |
1.0MPa |
Fire monitor rated flow |
40L/s |
Fire monitor rated pressure |
0.8MPa |
Fire monitor range |
≥60m (DC/Spray dual-purpose) |
Fire monitor rotates horizontally |
360°, Pitch: -75° to +75° |
Standard equipment |
Fire hoses, fire axes, fire extinguishers, demolition tools, etc. |
