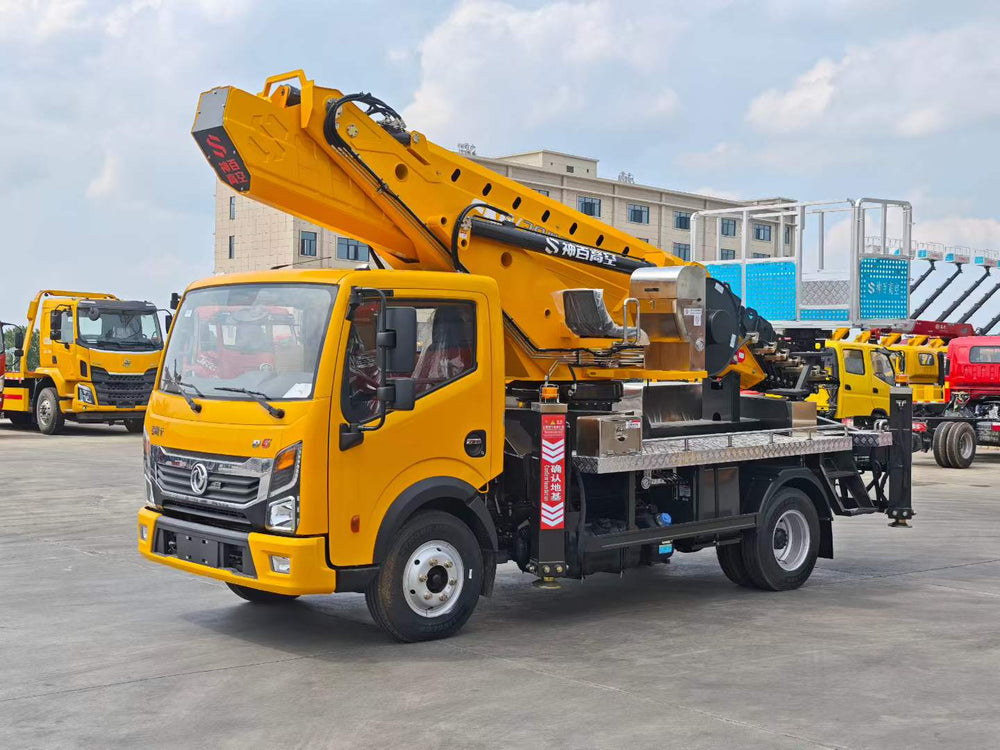

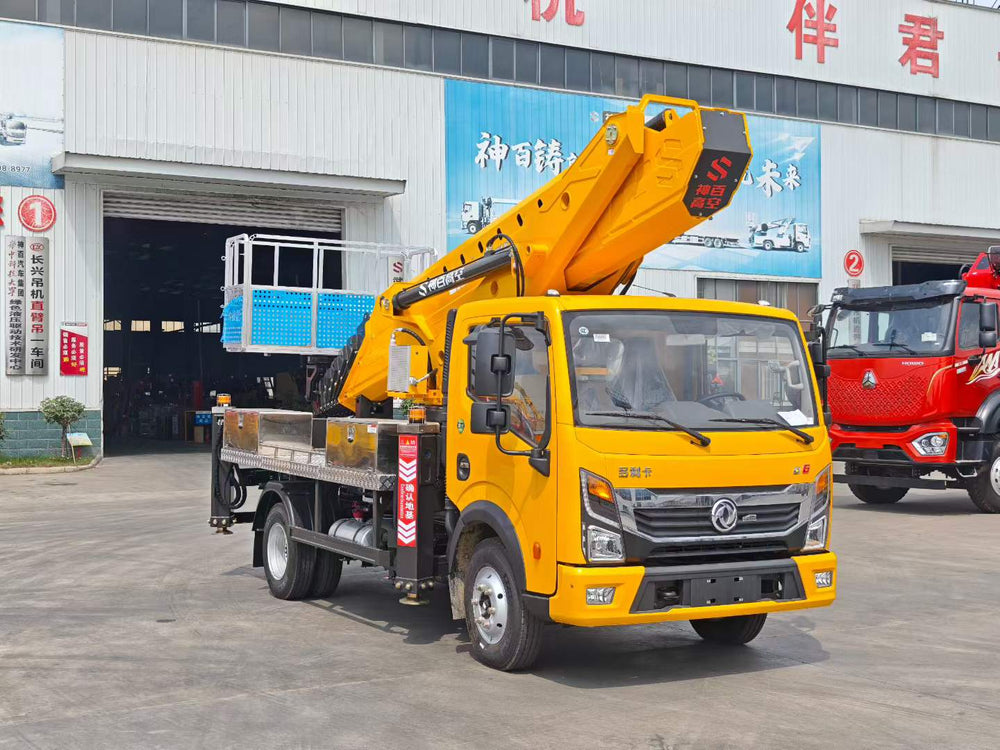

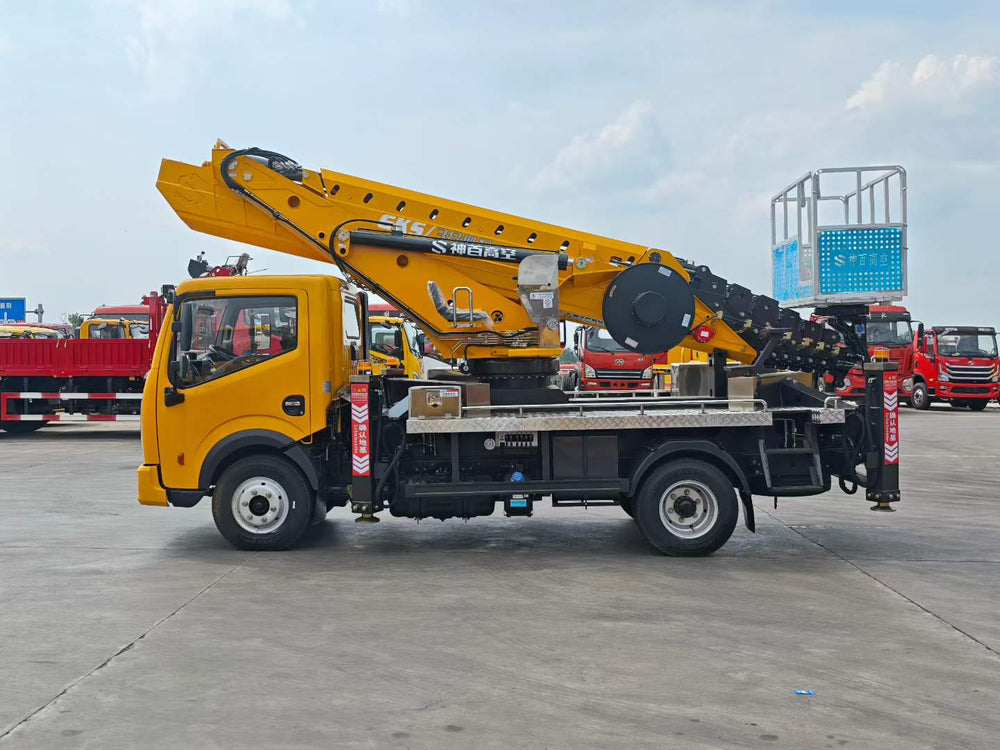

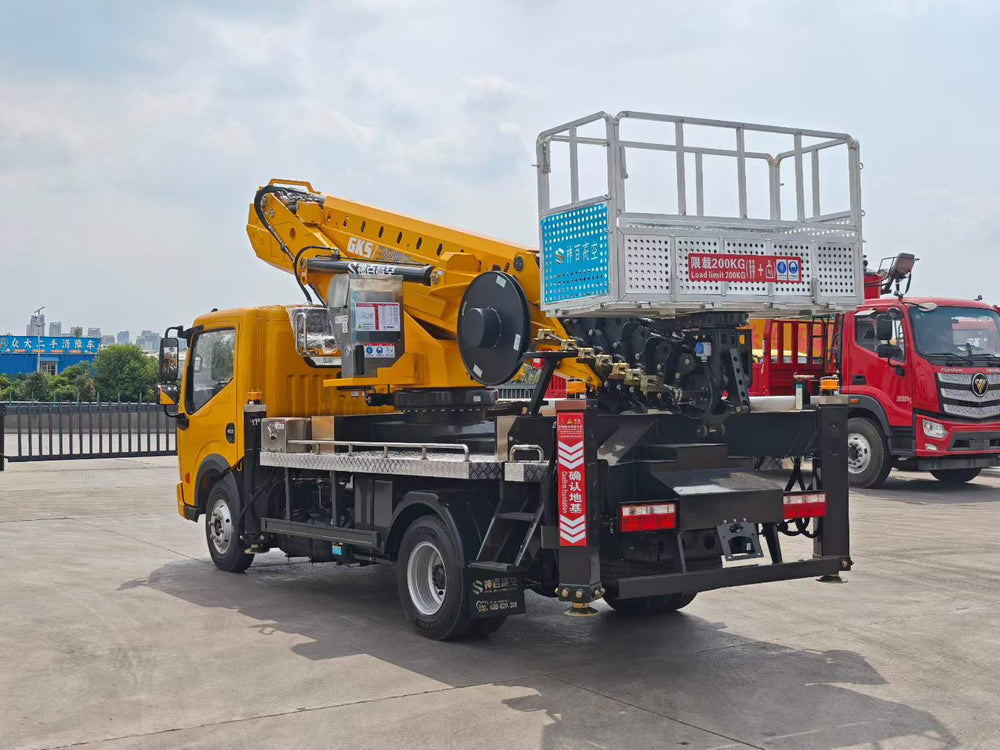

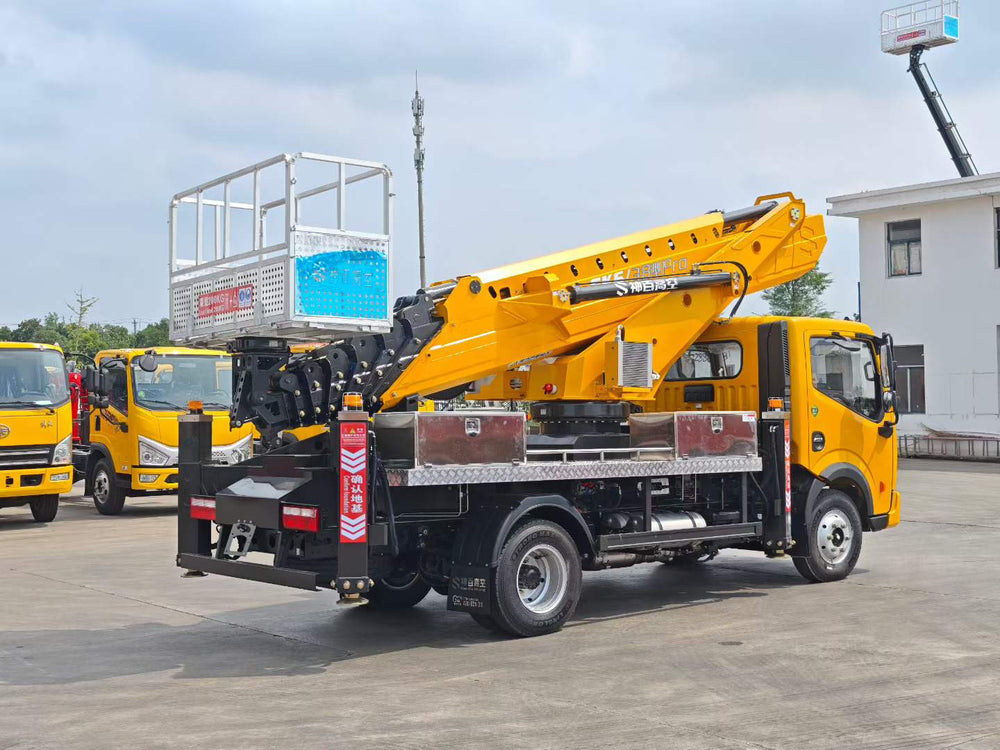

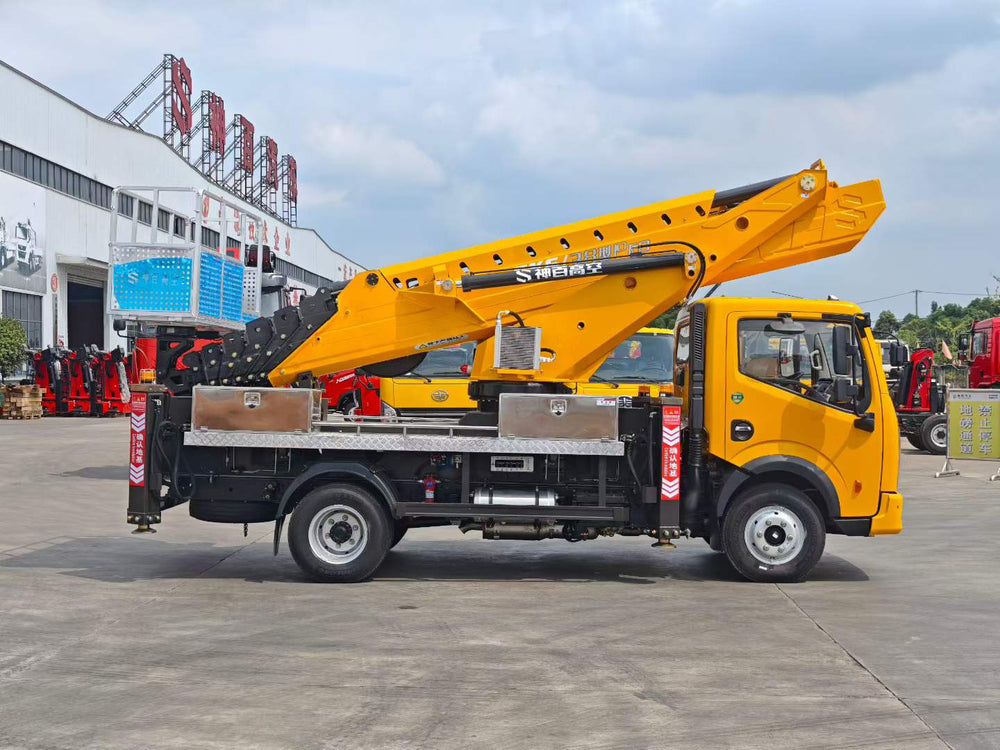

Dongfeng 38-meter aerial work platform truck - factory direct sales

1 / 8

1. Basic Vehicle Parameters
Chassis Brand	Dongfeng
Total vehicle weight	4500 kg
Curb weight	4400KG
Overall vehicle dimensions	5995mm2200mm3100mm
Engine Model	Yunnei 160HP
Horsepower	160horsepower
Gearbox	WanliyangMini 8-Speed
Wheelbase	3308mm
Tire specifications	700R16
Braking System	Air-over-hydraulic brake
Emission standards	Euro 2、Euro 3、Euro 4、Euro 5、Euro 6
Top speed	99km/h
Fuel tank capacity	75liters
Lateral support leg span (front/rear)	6120mm/5800mm
Standard configuration	Power Windows、Air Conditioner、Central Locking
2. Basic parameters of the upper part
Maximum working height	36.3m
Maximum working radius	21m

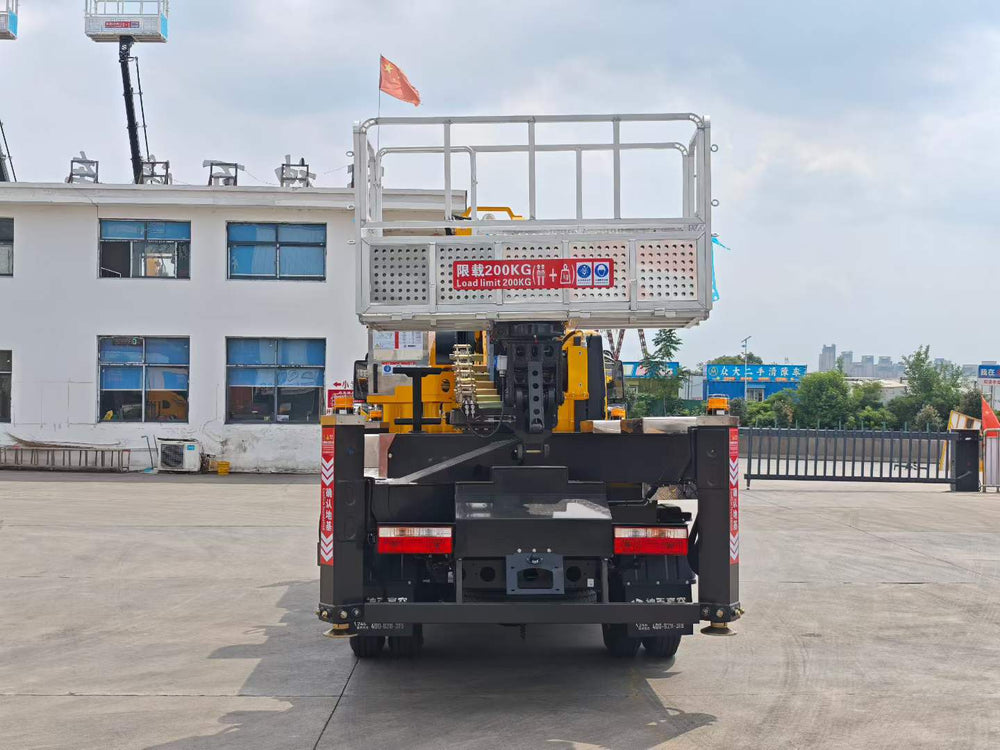

Rated load of the work platform	260 kg

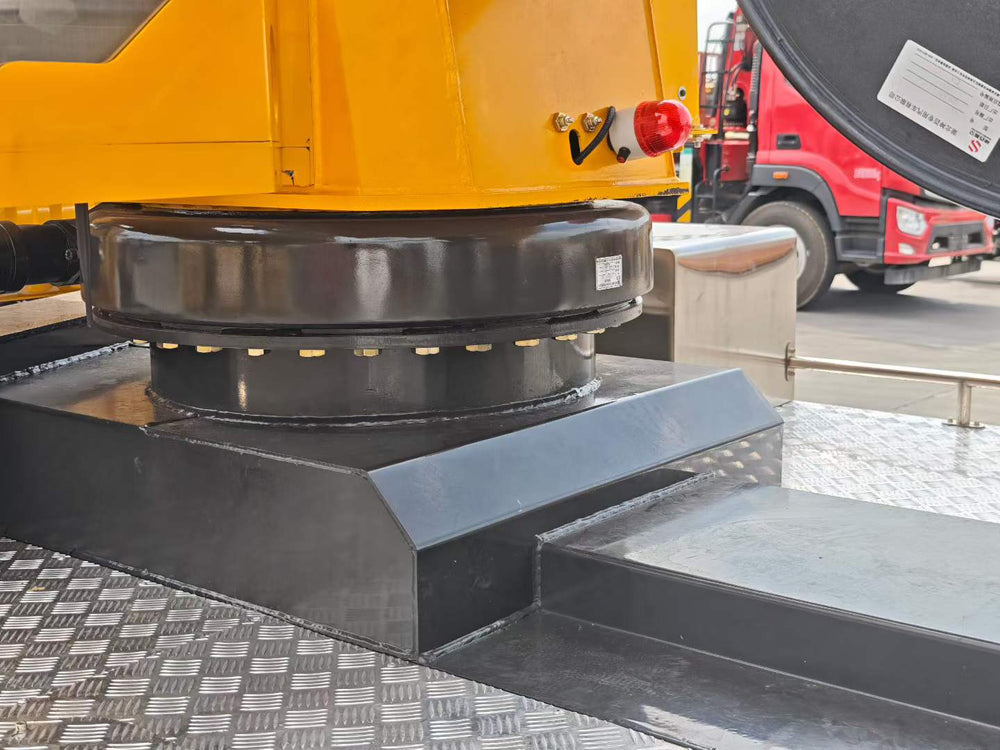

Boom slewing angle	360° rotation
Overall platform dimensions	1800 × 900 × 1000 mm
Platform rotation range	±180°
Boom structure	7Section Boom，6Sections Synchronous Telescopic，Wire Rope Boom ExtensionWith Backup Wire Rope，Even if the Main Wire Rope Breaks，It Can Lower the Person Steadily
Control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper and Lower Vehicle Interlock、Emergency Power Source、Two-way Hydraulic Balance Valve，Soft Leg Protection，Radiator，220VExternal Power Supply
