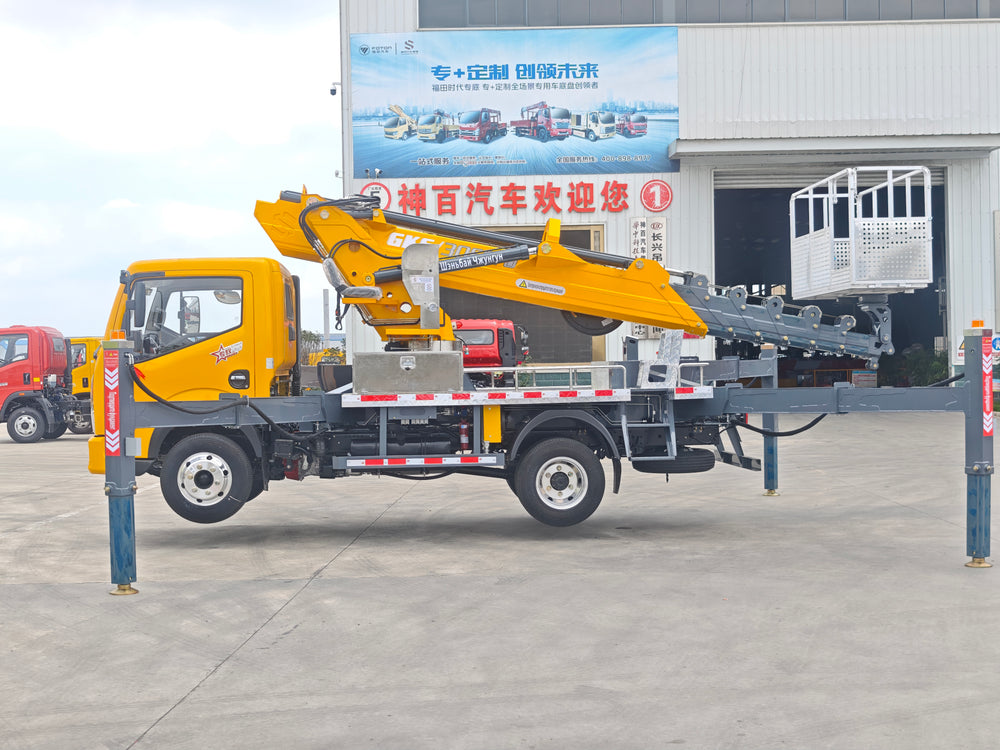

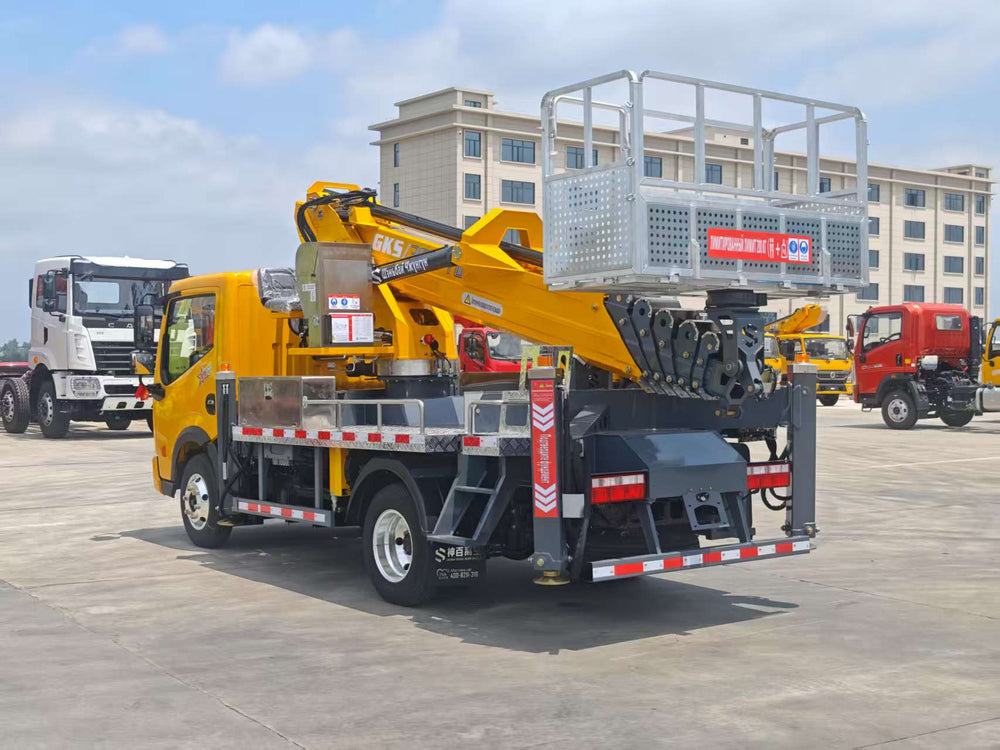

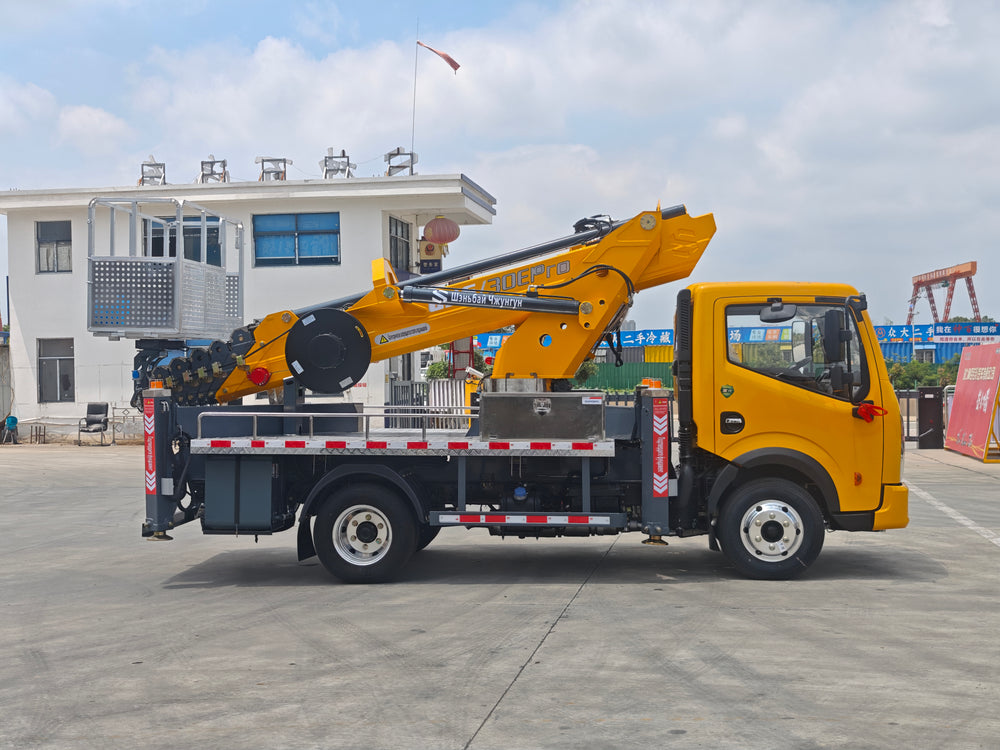

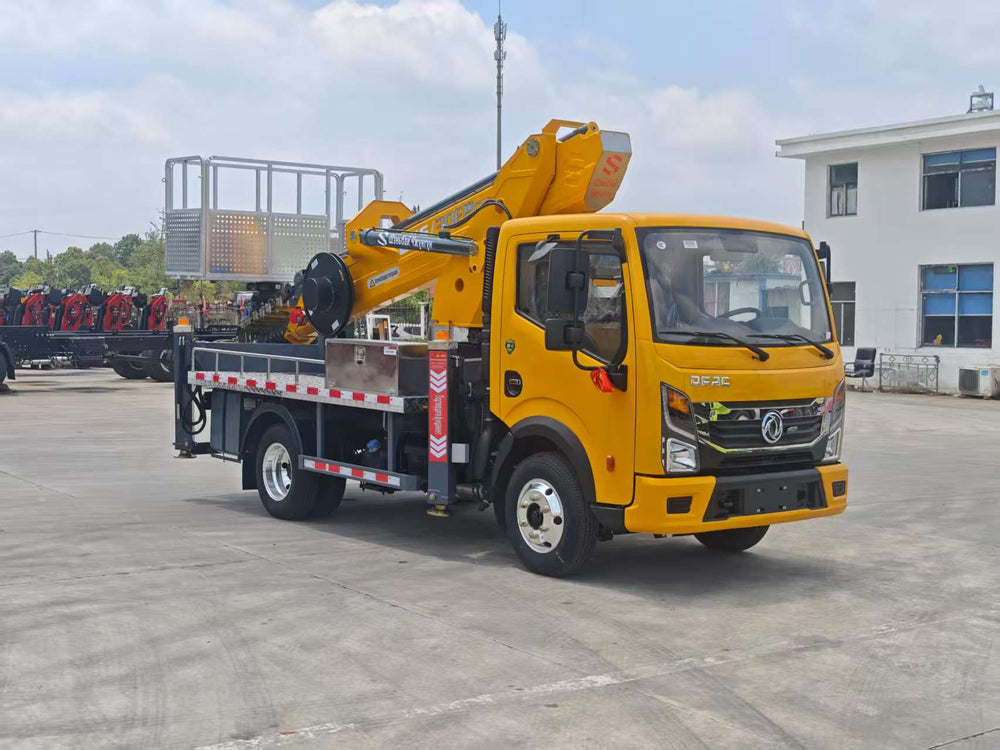

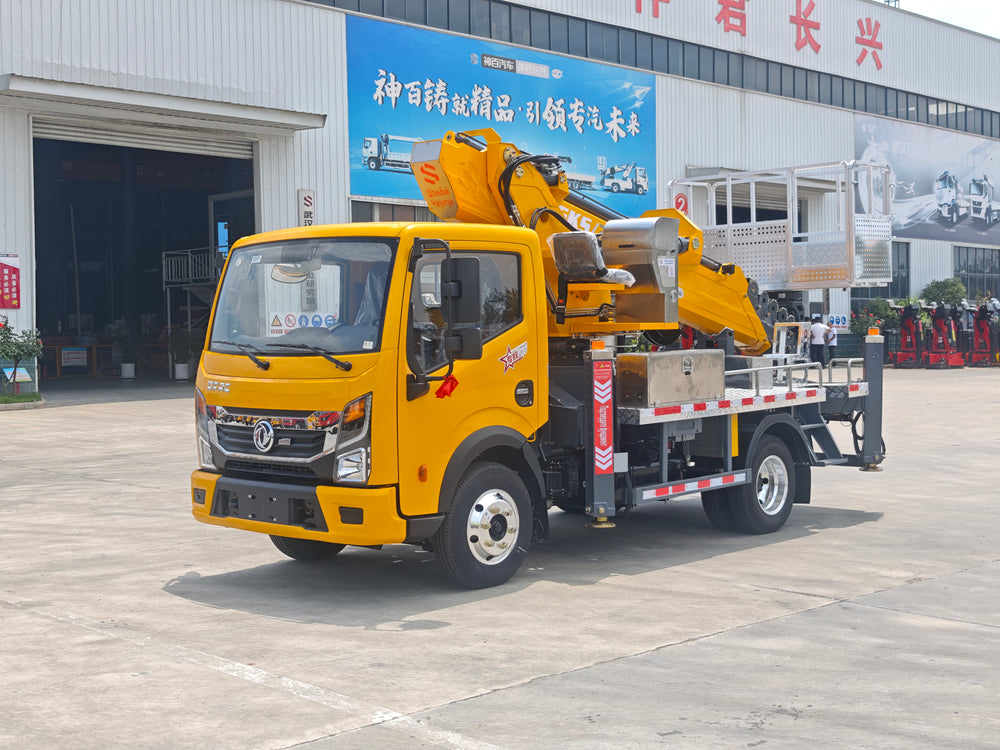

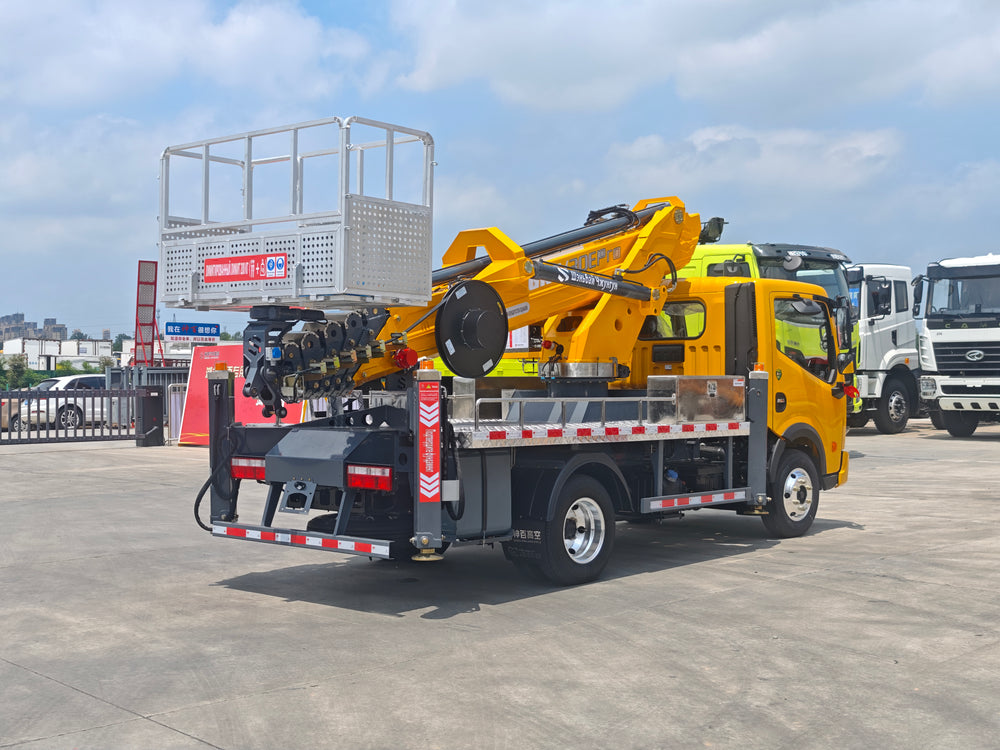

Dongfeng 30-Meter Aerial Work Platform Truck

1 / 7

1. Basic Vehicle Parameters
Chassis Brand	DongFeng
Total vehicle weight	4495 kg
curb weight	4365 kg
Overall vehicle dimensions	5995 × 2030 × 2700 mm
Engine Model	Quanchai Q23-132E60
horsepower	132horsepower
gearbox	Wanliyang 5GT32, 5-speed Manual
wheelbase	2950 mm
Tire specifications	6.50R15LT Steel Radial Tyre
Braking System	Air Brake + ABS
Emission standards	Euro 6
Top speed	110 km/h
fuel tank capacity	55liters
Lateral support leg span (front/rear)	6000mm/5800mm
Standard configuration	Single row 1730mm width, original factory A/C, power window, central locking, power steering
2. Basic parameters of the upper part

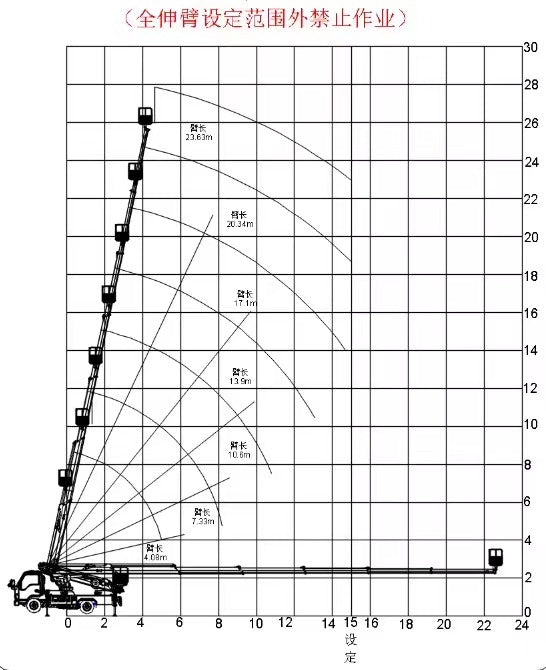

Maximum working height	28.3m
Maximum working radius	16 m
Rated load of the work platform	200 kg
boom slewing angle	360° rotation
Overall platform dimensions	1800 × 700 × 1000 mm
Platform rotation range	±180°
boom structure	7-section hexagonal high-strength steel boom, 6-section synchronous telescopic
control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper control room interlocking device, stroke limit valve protection device, hydraulic balancing device
