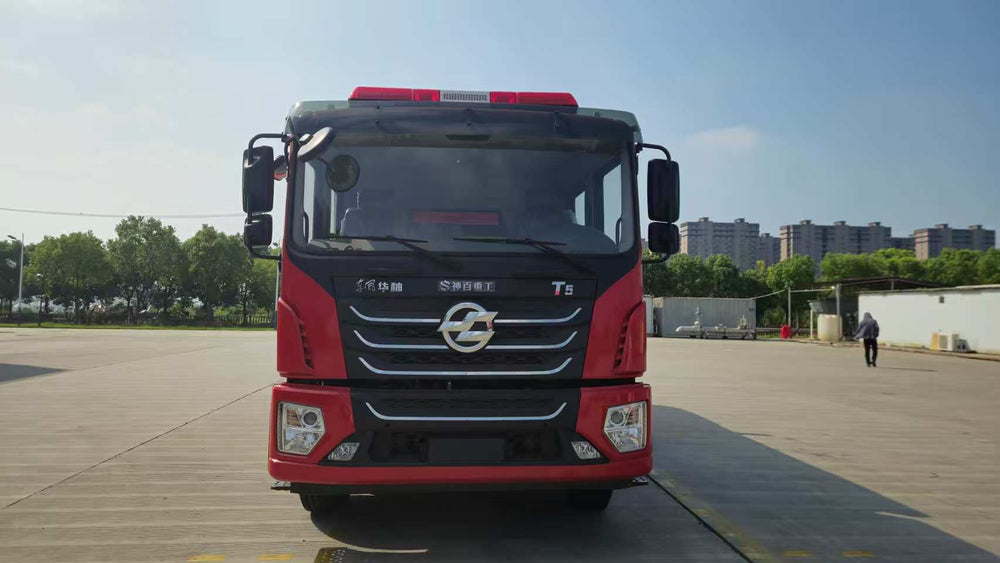

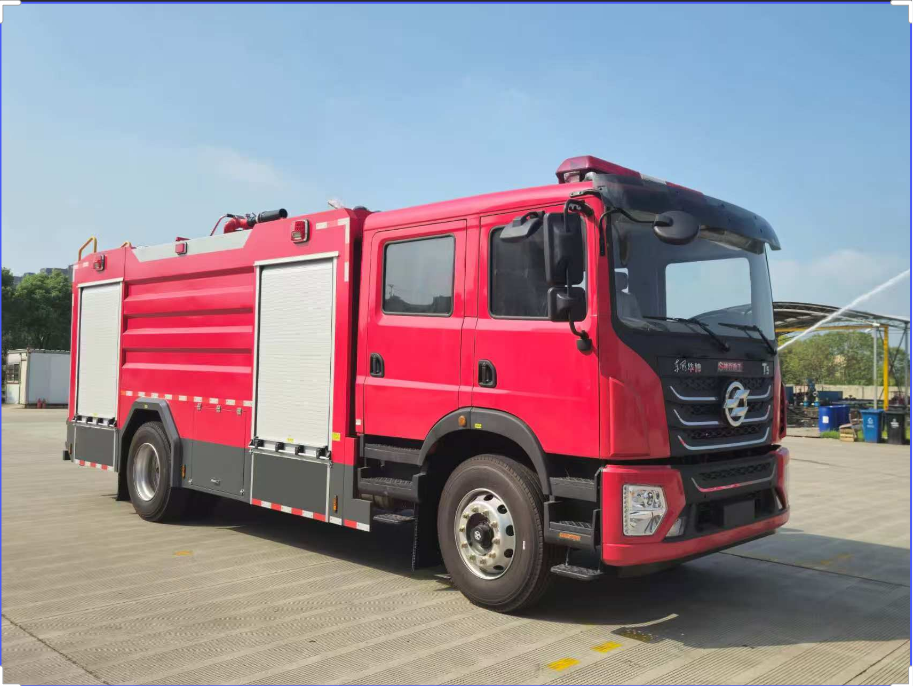

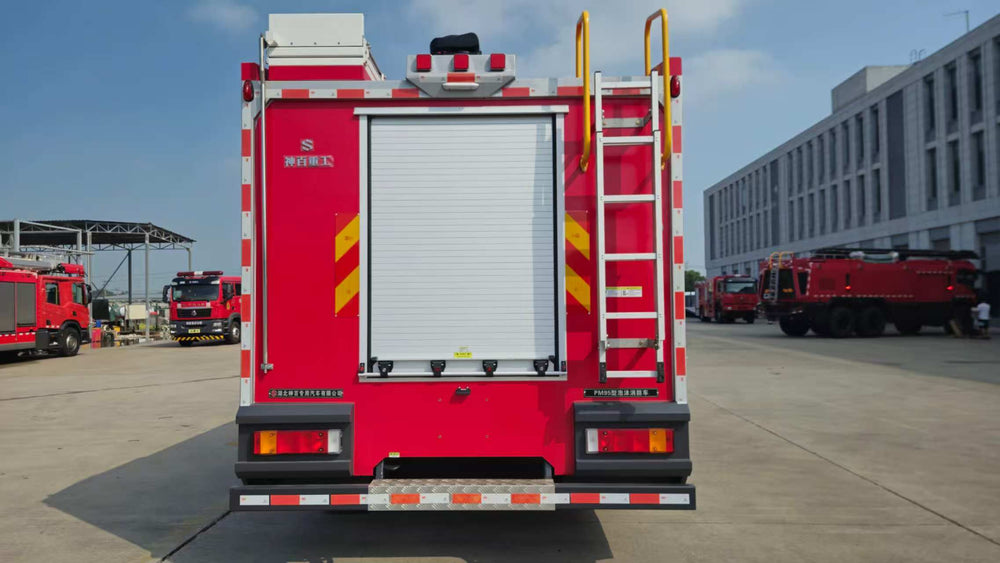

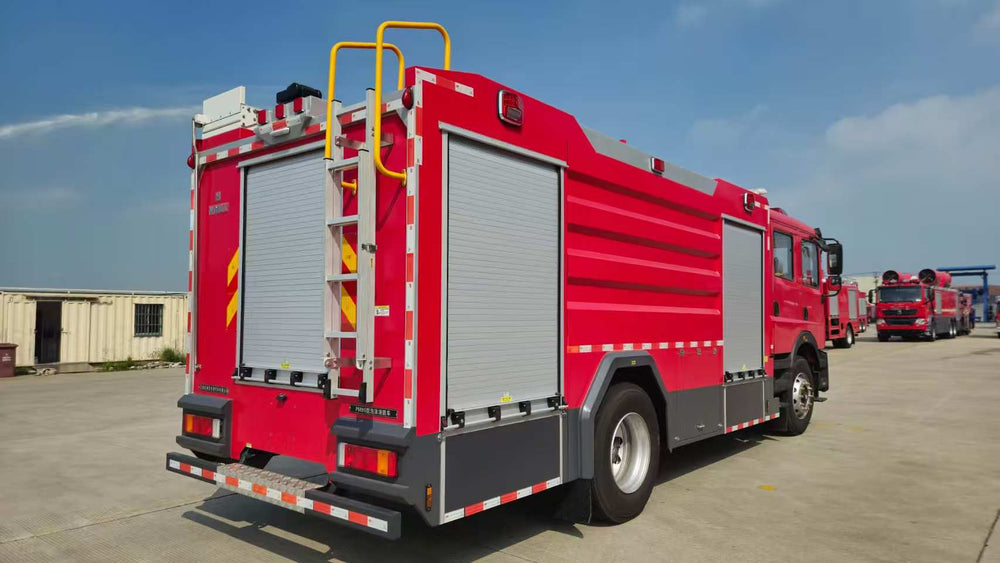

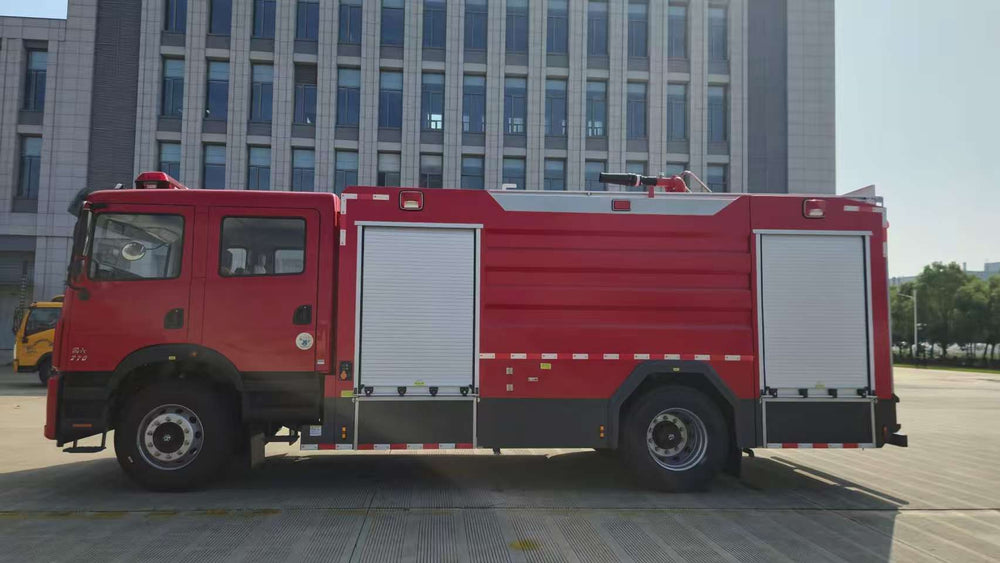

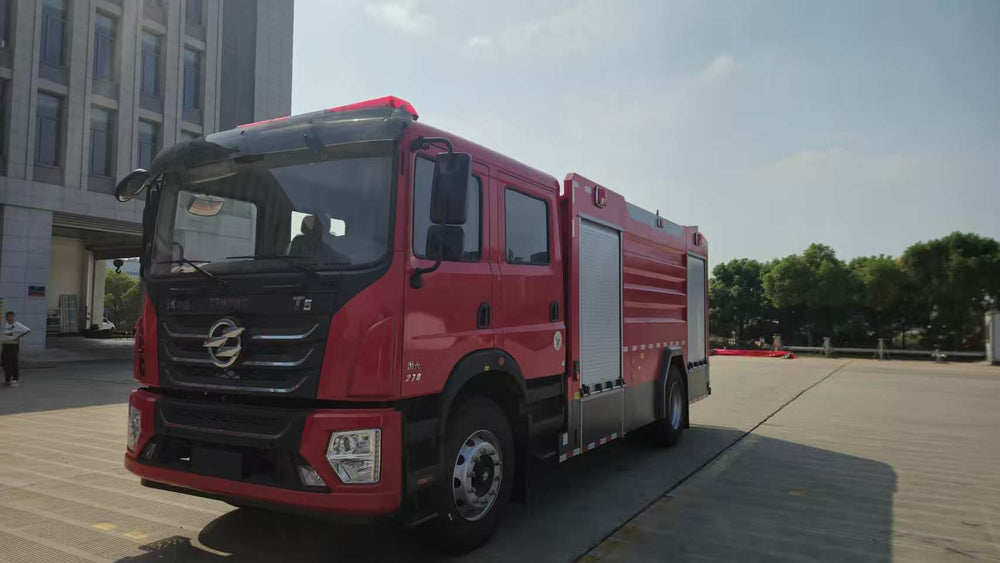

Dongfeng 10-Cubic-Meter Foam Fire Truck

1 / 7

1. Basic vehicle parameters
Chassis Brand	Dongfeng
Total vehicle weight	18000kg
curb weight	12500kg
Rated water capacity	9700kg
Overall vehicle dimensions	8500×2500×3300mm
Top speed	90 km/h
2. Basic parameters of the chassis
Driver type	4x2, left-hand drive
Engine Model	YC6A245-60
horsepower	245HP / 180kWkW
gearbox	8-speed manual
Front axle/Rear axle	6.5 tons / 13 tons
wheelbase	4700mm
Tire specifications	295/80R22.5 18PR
Emission standards	Euro 6
3. Basic parameters of the upper part
Water tank capacity	9700L(Water tank: 7.2m³ carbon steel, corrosion resistant; foam tank:2.5m³ 304 stainless steel)
Water tank material	5mm carbon steel, internal anti-corrosion treatment, orange-vein paint finish.
Fire pump rated flow	60L/s
Fire pump rated pressure	1.0MPa
Fire monitor rated flow	48L/s
Fire monitor rated pressure	0.8MPa

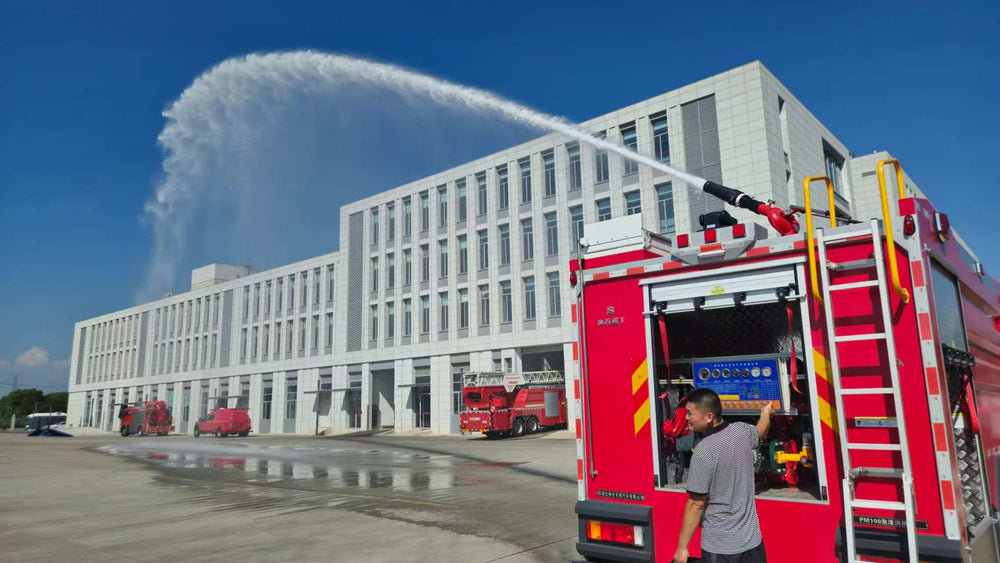

Fire monitor range	Water ≥ 70m, Foam ≥ 55m
Fire monitor rotates horizontally	360°, Pitch: -75° to +75°
Standard equipment	Fire hoses, fire axes, fire extinguishers, demolition tools, etc.
