Dong feng Dolica Heavy-duty 20m Multi-functional 3-in-1 Truck-mounted Aerial Work Vehicle

1 / 8

Dong feng Dolica Heavy-duty 20m Multi-functional 3-in-1 Truck-mounted Aerial Work Vehicle

1. Basic Vehicle Parameters
Chassis Brand	DongFeng
Total vehicle weight	4495 kg
curb weight	4300 kg
Overall vehicle dimensions	5998 mm × 2200 mm × 2950 mm
Engine Model	YN25PLUS160B
horsepower	160 horsepower
gearbox	Fast 8-speed
Front axle/Rear axle	2.2 tons / 3.5 tons
wheelbase	3308 mm
Tire specifications	7.00R16
Emission standards	Euro 6
Top speed	110 km/h
fuel tank capacity	75 liters
Lateral support leg span (front/rear)	5150 mm / 4500 mm

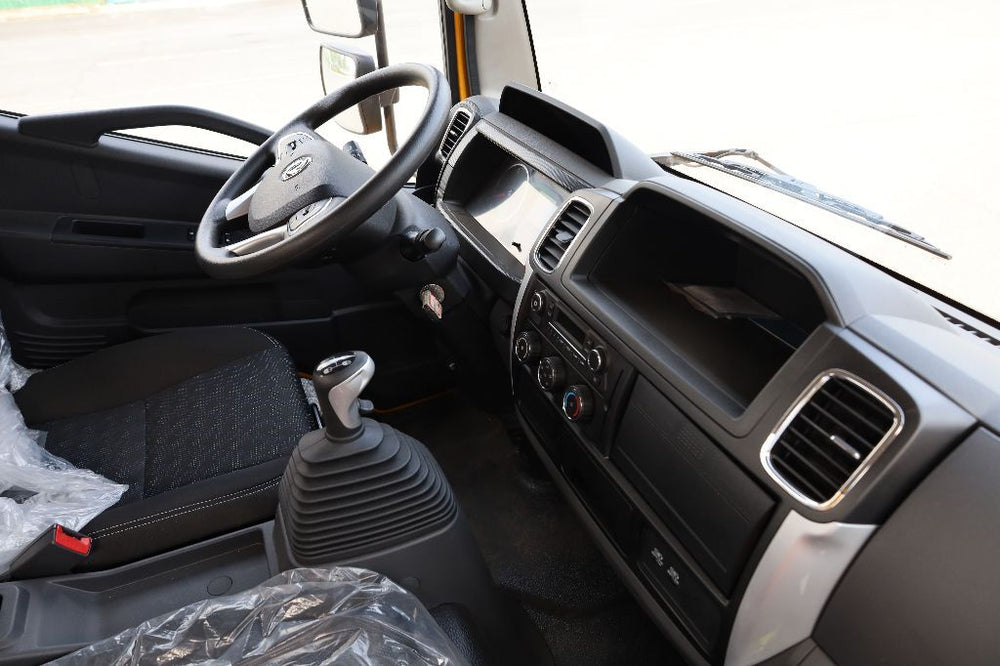

Standard configuration	Single-row 1900 cab, ABS anti-lock braking system, central locking, power windows, air conditioning

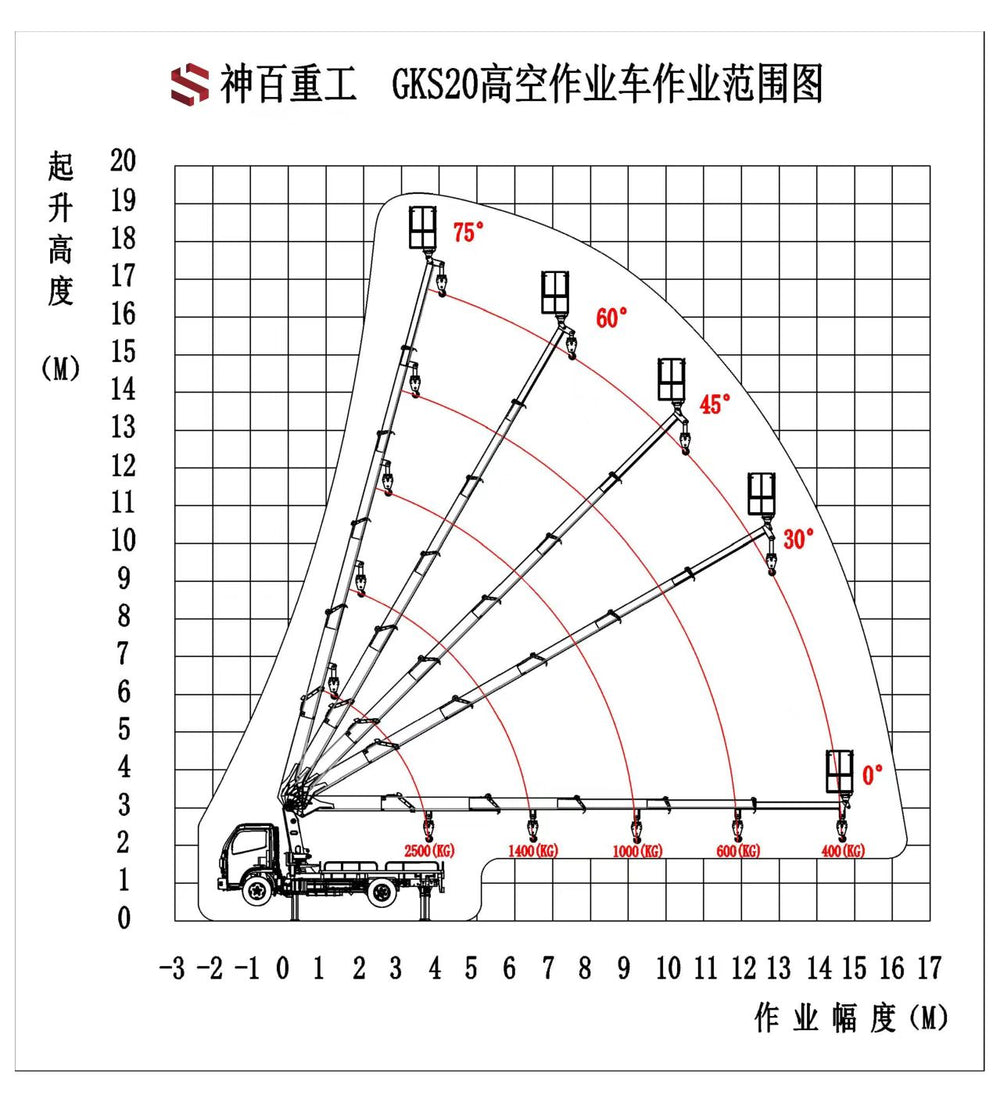

2. Basic parameters of the upper part
Maximum working height	19.2 meters
Maximum working radius	12 meters
Rated load of the work platform	200 kg
boom slewing angle	360° rotation
Overall platform dimensions	1500×700×1100 mm
Platform rotation range	±180°
boom structure	The boom has 6 sections, 5 of which are synchronous telescopic; it is equipped with a spare steel wire rope to safely lower personnel in the event of a breakage of the main rope.
control system	The electronic control system is from a well-known brand and comes standard with wireless backlighting and a central control display screen.
Hydraulic system	Electro-hydraulic proportional valve with stepless speed regulation function
Hydraulic outriggers	The H-type 4-group telescopic bracket is independently adjustable and highly stable.
Safety devices	Upper control room interlocking device, stroke limit valve protection device, hydraulic balancing device

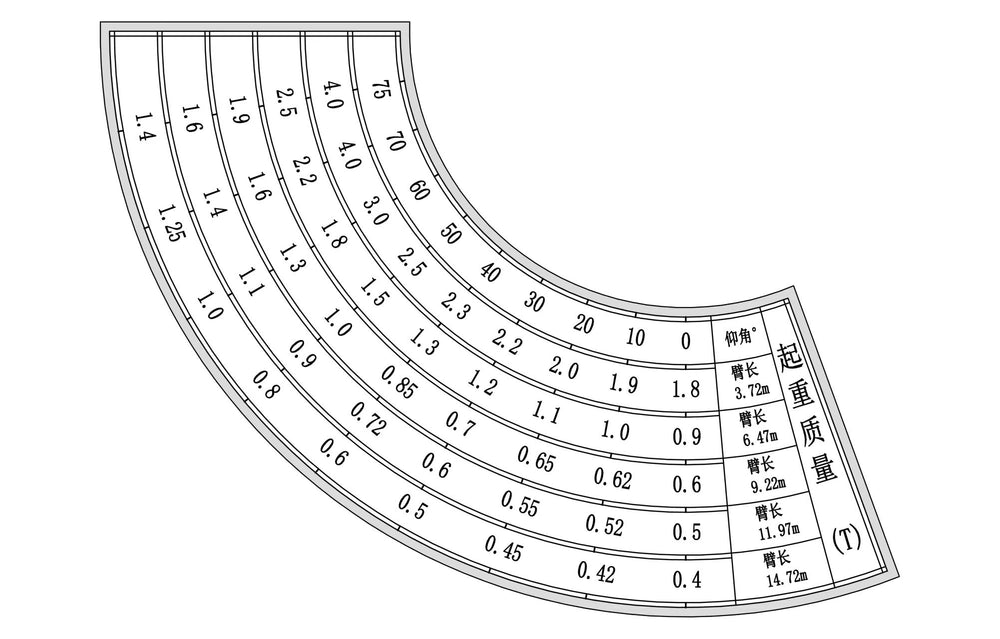

3. Basic parameters of the crane
Maximum lifting capacity	5000 kg
Main winch	5 tons
Maximum lifting height	17 meters
boom type	6-section boom with internal rope wiring
Rotation mode	360° free rotation
Power pump	single pump
Cargo box dimensions	3300 mm × 2200 mm
Operating mode	Central control + intelligent remote control
