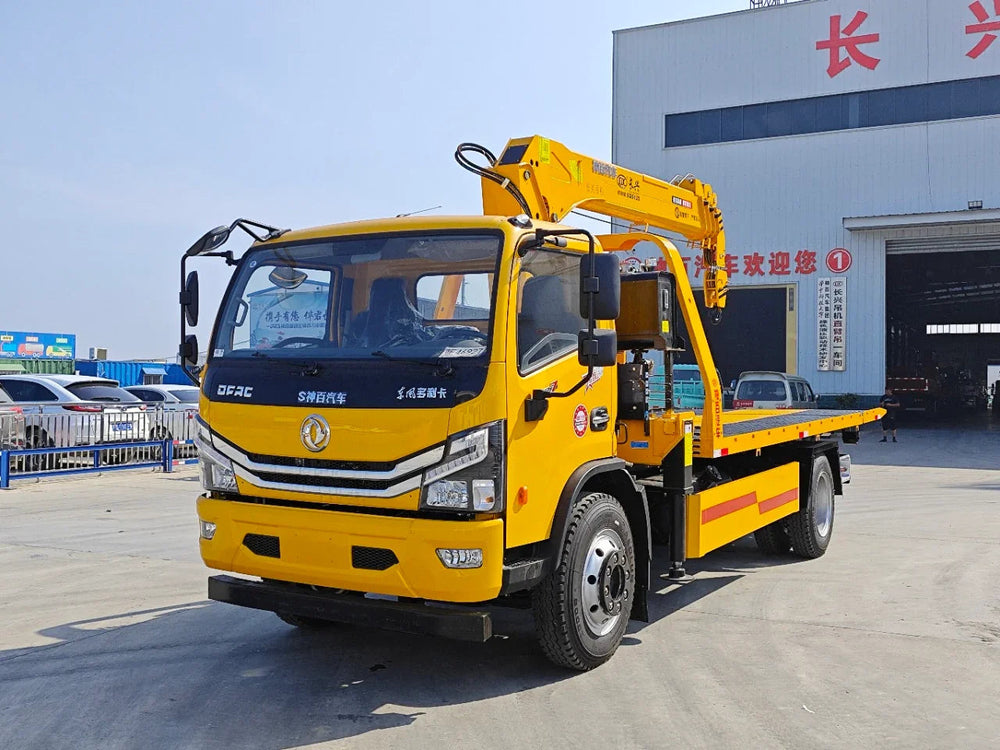

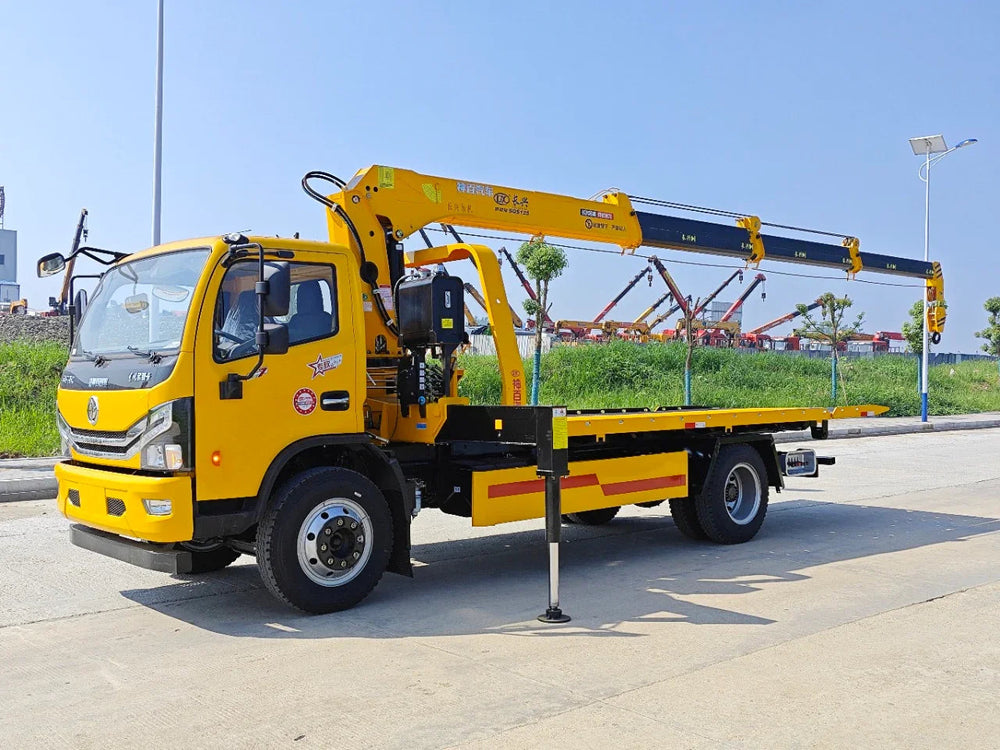

DFAC 4*2 Wrecker truck 5T Telescopic Boom Crane

Basic parameters of vehicle

Chassis Brand

DongFeng

Drive Type

Left Hand Drive 4*2

Vehicle Size(mm)

8380*2550*3680

G.V.W(kg)

11995

Engine Model

YCY30165-60

Engine power

165HP/121KW

Displacement

2.97L

Emission Standard

Euro 6

Wheelbase

4400mm

Cab Capacity

2

Transmission

Fast 8-speed Manual Transmission

Rear Axle

7T

Tyre Size

8.25R20

Superstructure configuration

Adopts one-drive-two superstructure and sunken mounting technology to lower the center of gravity of the platform.

Platform height from ground: 1.2 m

Overall platform length: 5.6 m - 5.7 m

Platform width: 2.55 m

Rear flip section length: 1.2 m

The platform is made of 5 mm anti-skid patterned plate, with 14 mm solid steel frame with holes. It adopts full-length detachable flip hinges at the rear.

The slide rails are made of 10 mm manganese steel, and the flared ends are reinforced with 8 mm steel plates on the outer side.

The platform bottom features reinforced grid structure and dense triangular diagonal supports.

Equipped with 5-ton winch and 6-ton rear bracket arm, and Zhongmei multi-way hydraulic valve.

Platform telescopic cylinder: 110 mm

Lifting cylinder: 110 mm
