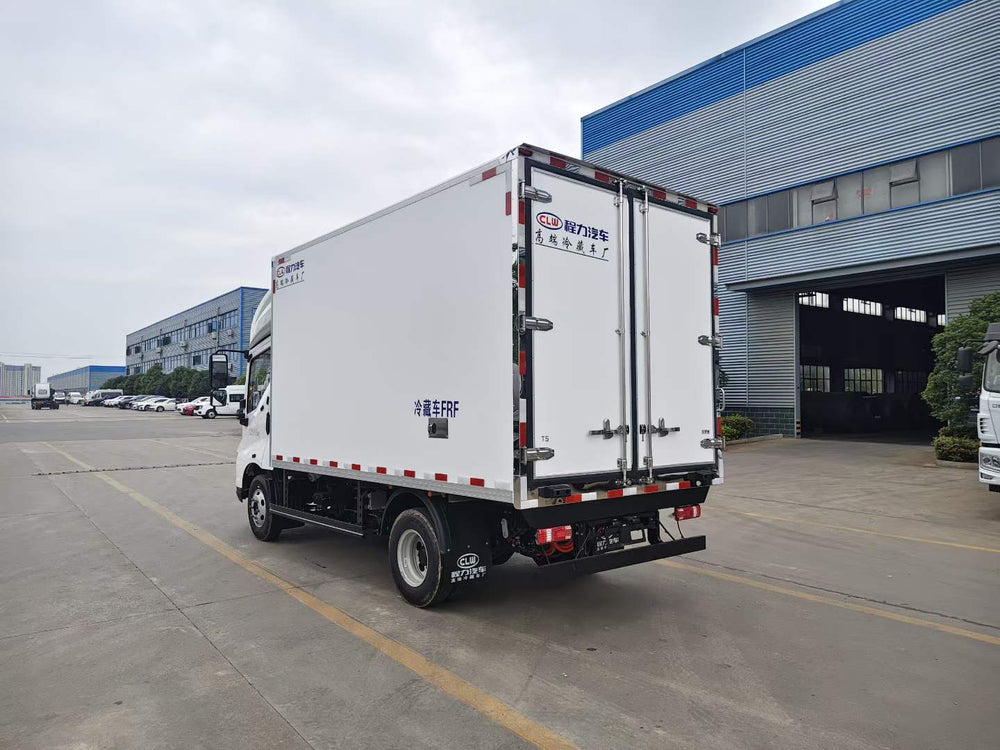

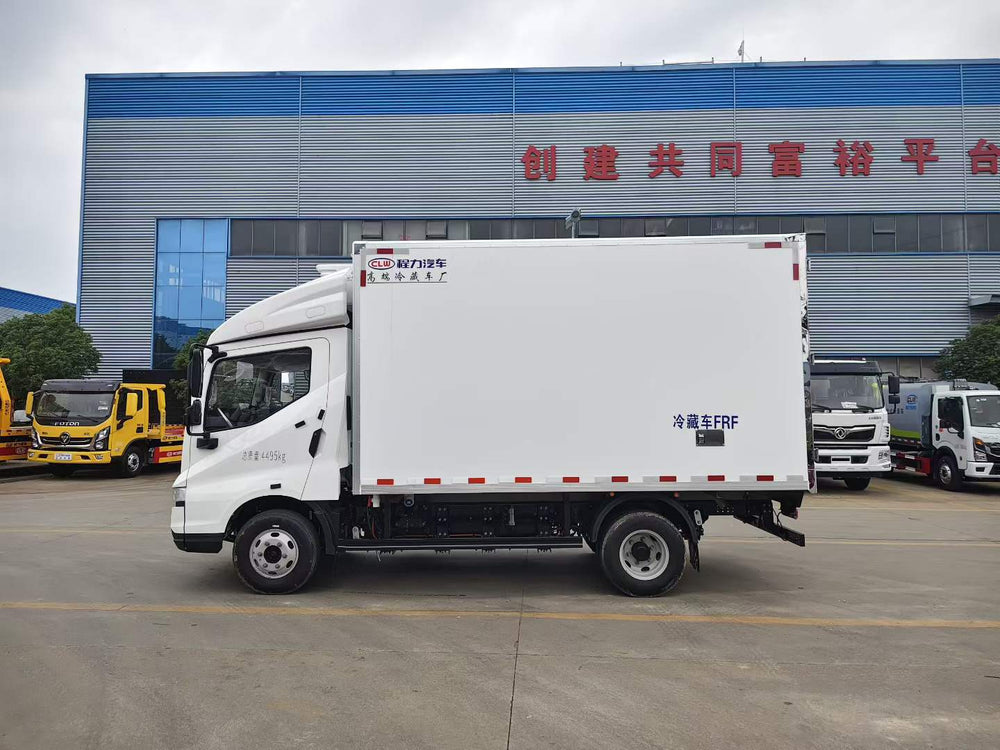

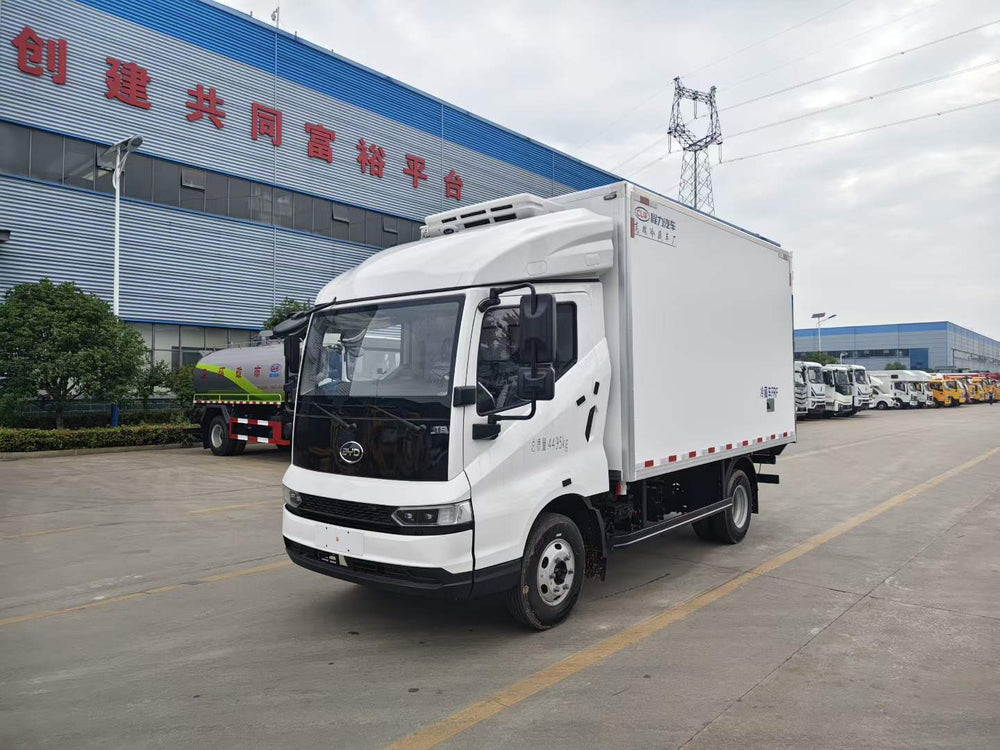

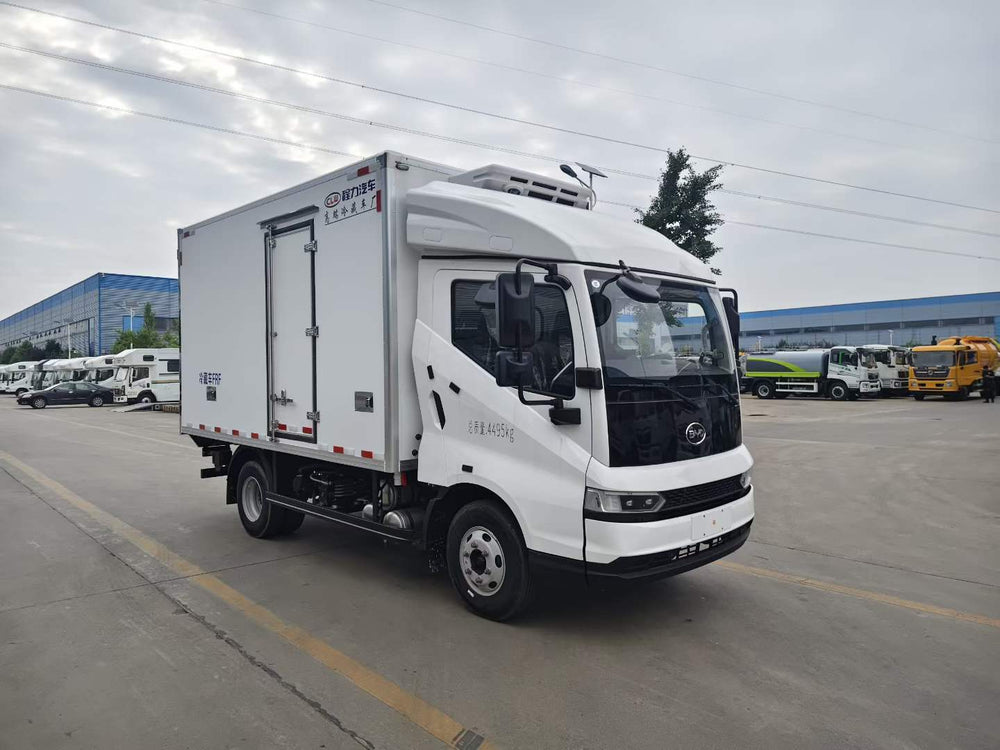

BYD 4.2-meter (151 kWh) pure electric refrigerated truck

1 / 8

1. Basic vehicle parameters
Chassis Brand	BYD 4x2
Total vehicle weight	4495kg
Curb weight	3300 kg
Overall vehicle dimensions	5995×2260×3265mm
Top speed	100 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Battery	Fudi Blade Lithium Iron Phosphate Battery151kWh
Range	CLTC 390km
Motor	Permanent magnet synchronous motor 150kW
Electric drive axle	Two-speed transmission
Tire specifications	7.00R16LT

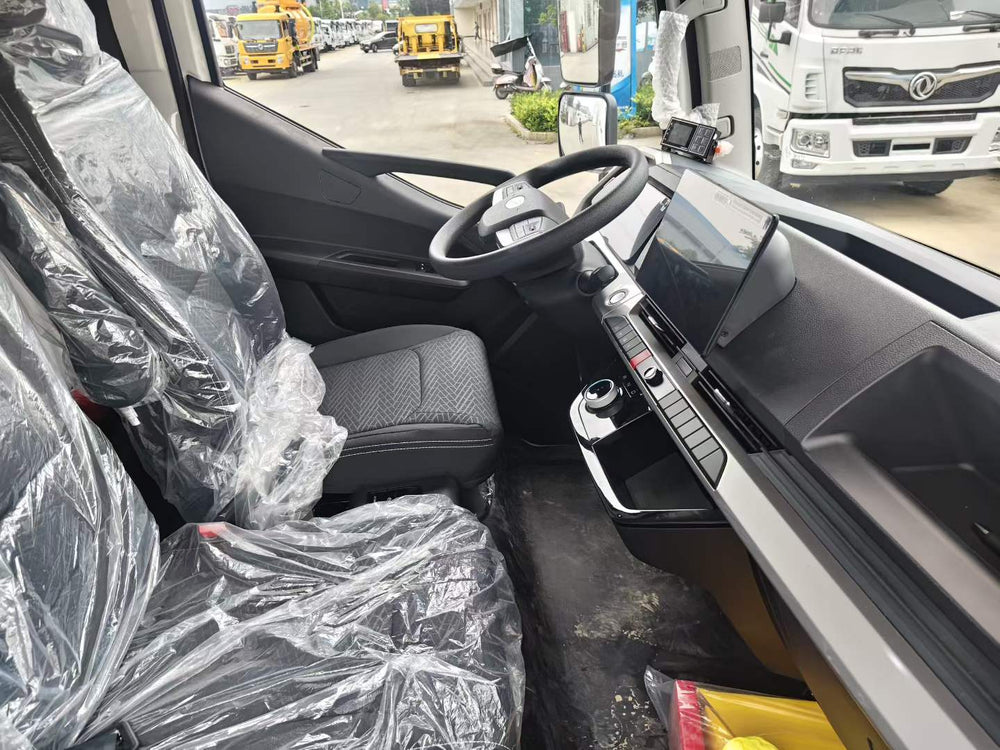

Other configurations	Full-floating airbag shock absorption, intelligent cockpit, four-way monitoring, central locking, power windows and doors, heated side mirrors, multi-function steering wheel, and LCD instrument panel.
3. Basic parameters of the upper part
Cargo box dimensions	4080×2100×2100mmmm
Material	Fiberglass inner and outer layers, with an 80 mm polyurethane foam core, hot-pressed into one piece.
Body thickness	80 mm

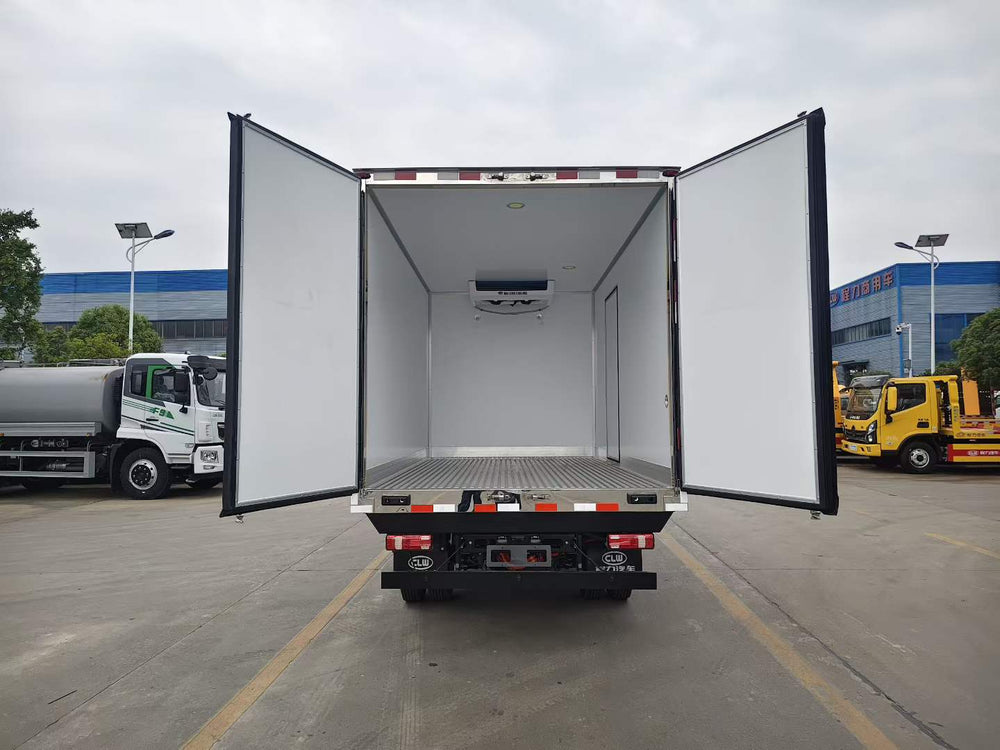

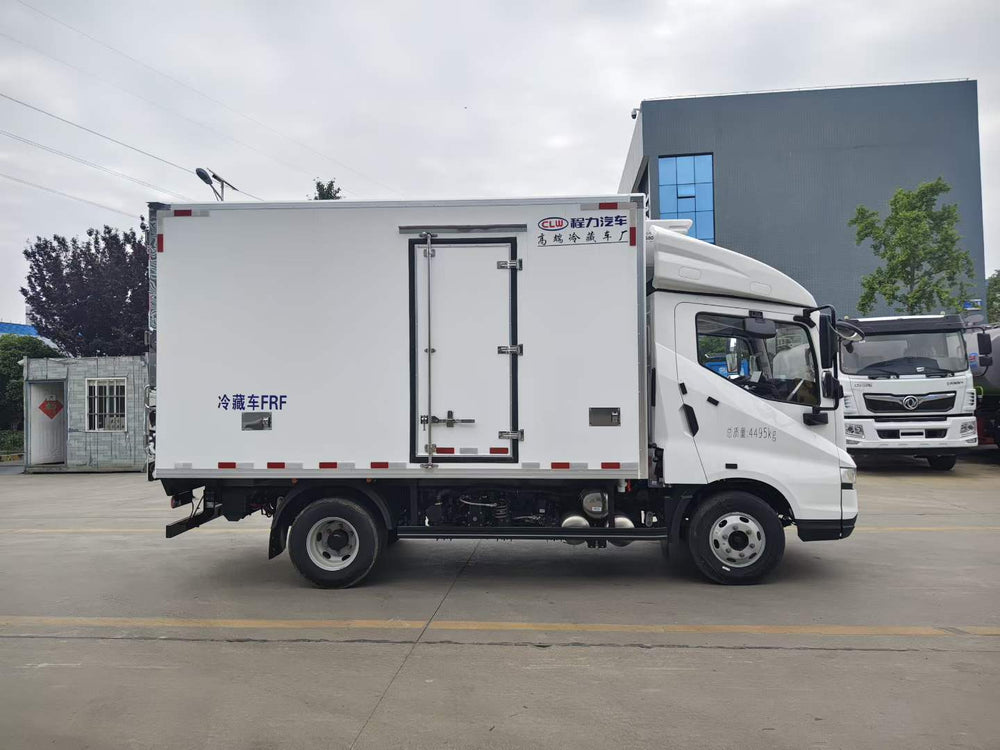

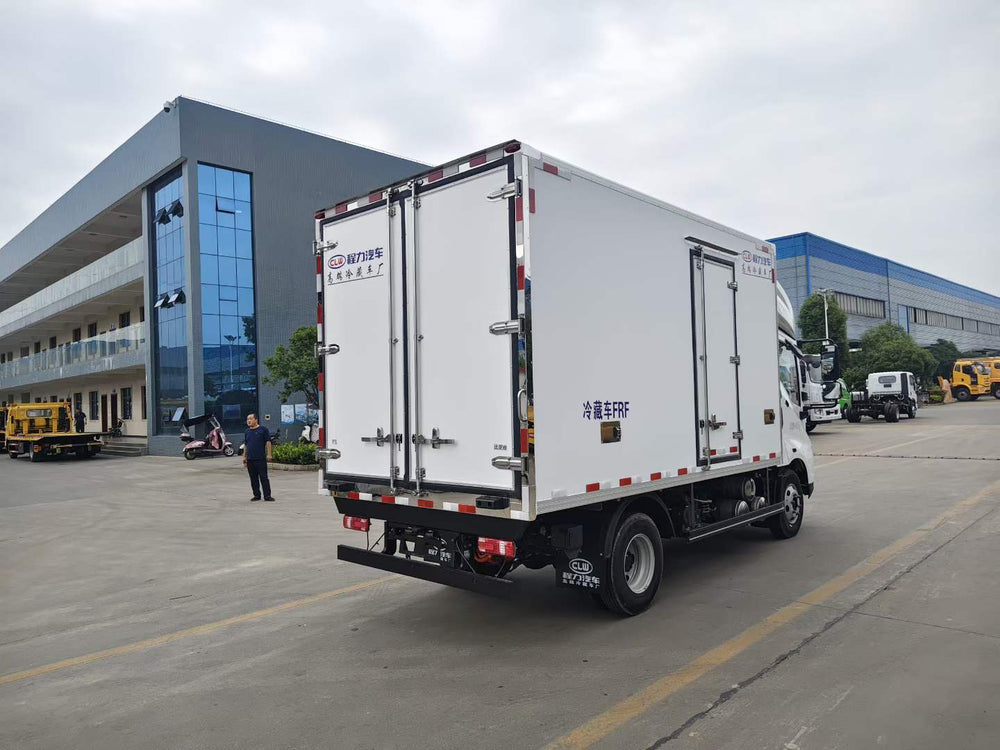

Doors/Floors	Right-side door, full-size double rear door, non-slip and wear-resistant flooring
Refrigeration unit	Domestic (-18℃) / Imported (such as Carrier, Thermo King, -25℃) options available
Optional features	meat hook rails, ventilation slots, LED interior lights
