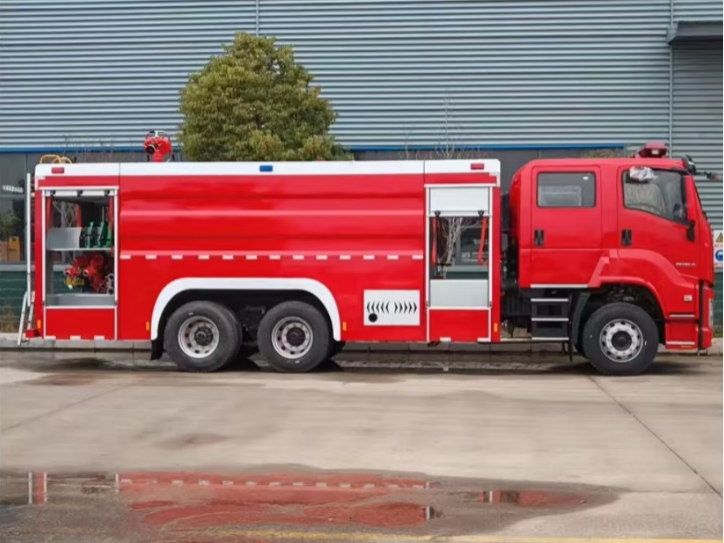

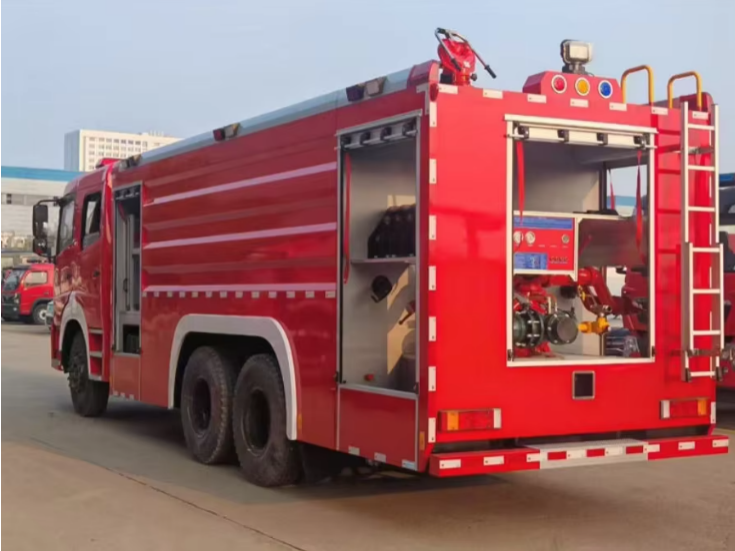

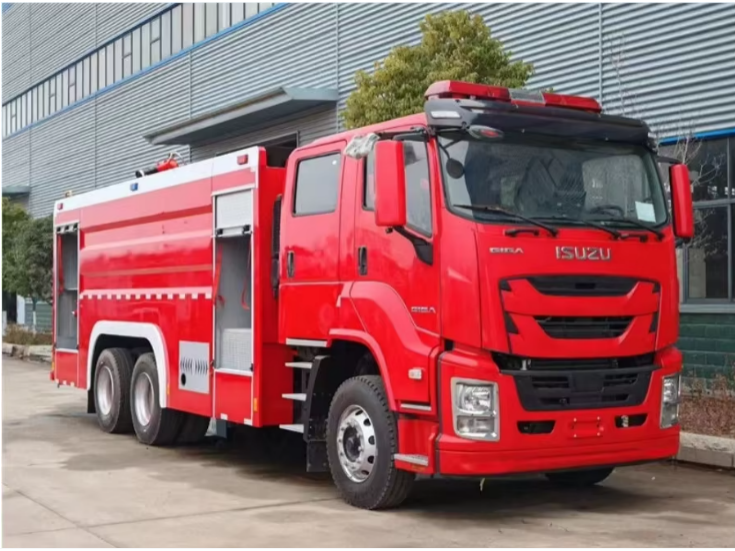

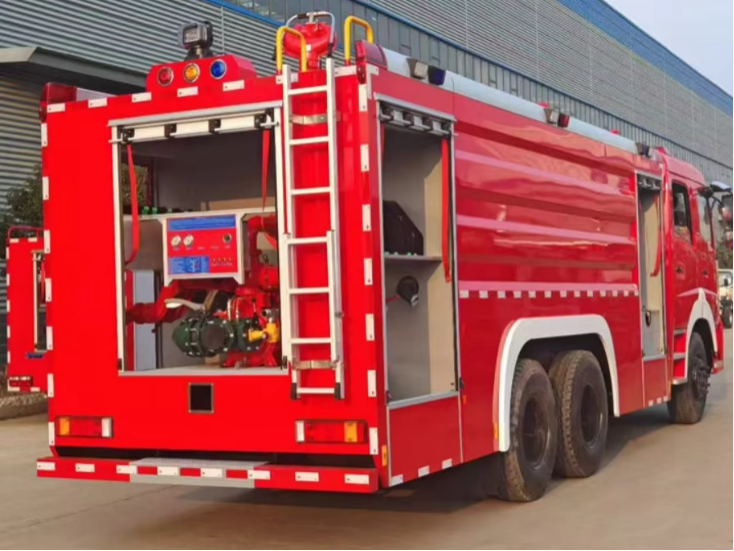

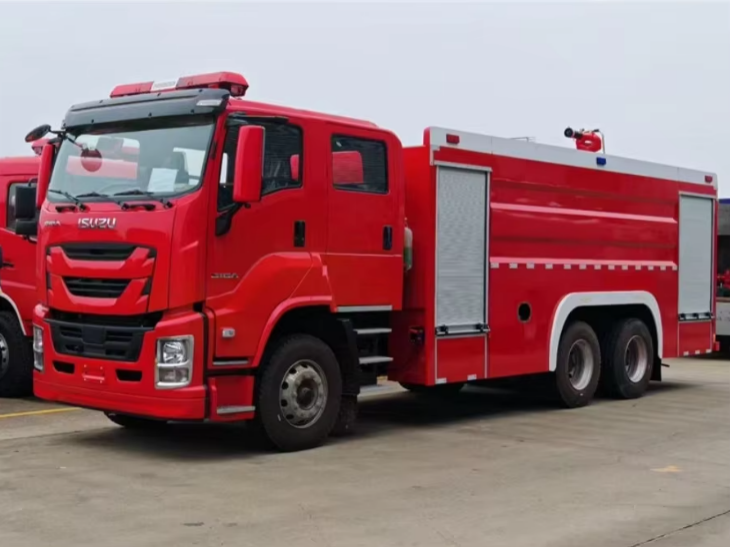

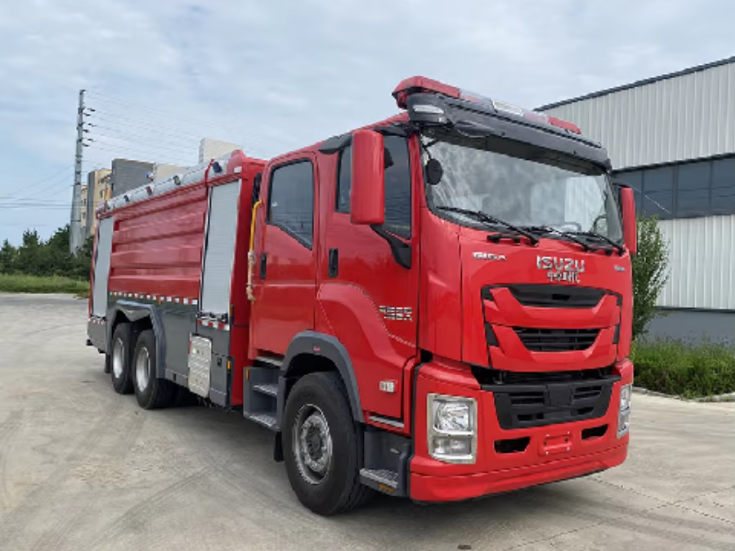

16m³ Isuzu Heavy Foam Fire Truck

1 / 7

1. Basic vehicle parameters
Chassis Brand	Isuzu 6*4
Total vehicle weight	31000 kg
Curb weight	14500 kg
Rated water capacity	16000 kg
Overall vehicle dimensions	10280×2540×3080 mm
Top speed	85 km/h
2. Basic parameters of the chassis
Driver type	left-hand drive
Engine Model	6WG1-TCG62
Horsepower	460HP / 338kWkW
Gearbox	12-speed manual
Front axle/Rear axle	7 tons / 16 tons
Wheelbase	5100+1370 mm
Tire specifications	385/65R22.5 20PR
Emission standards	Euro 2、Euro 3、Euro 4、Euro 5、Euro 6
3. Basic parameters of the upper part
Water tank capacity	1600L(Water tank: 12m³ carbon steel, corrosion resistant; foam tank:4m³ 304 stainless steel)
Water tank material	5mm carbon steel, internal anti-corrosion treatment, orange-vein paint finish.
Fire pump rated flow	140L/s
Fire pump rated pressure	1.0MPa
Fire monitor rated flow	64L/s
Fire monitor rated pressure	1MPa
Fire monitor range	Water ≥ 85m, Foam ≥ 75m
Fire monitor rotates horizontally	360°, Pitch: -75° to +75°
Standard equipment	Fire hoses, fire axes, fire extinguishers, demolition tools, etc.
