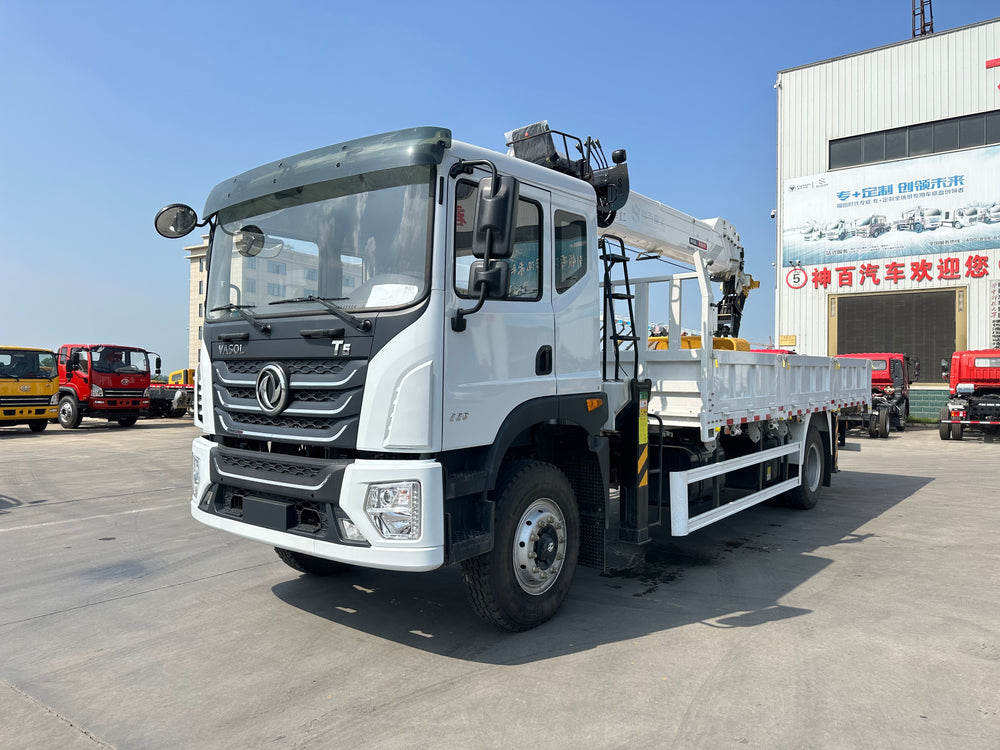

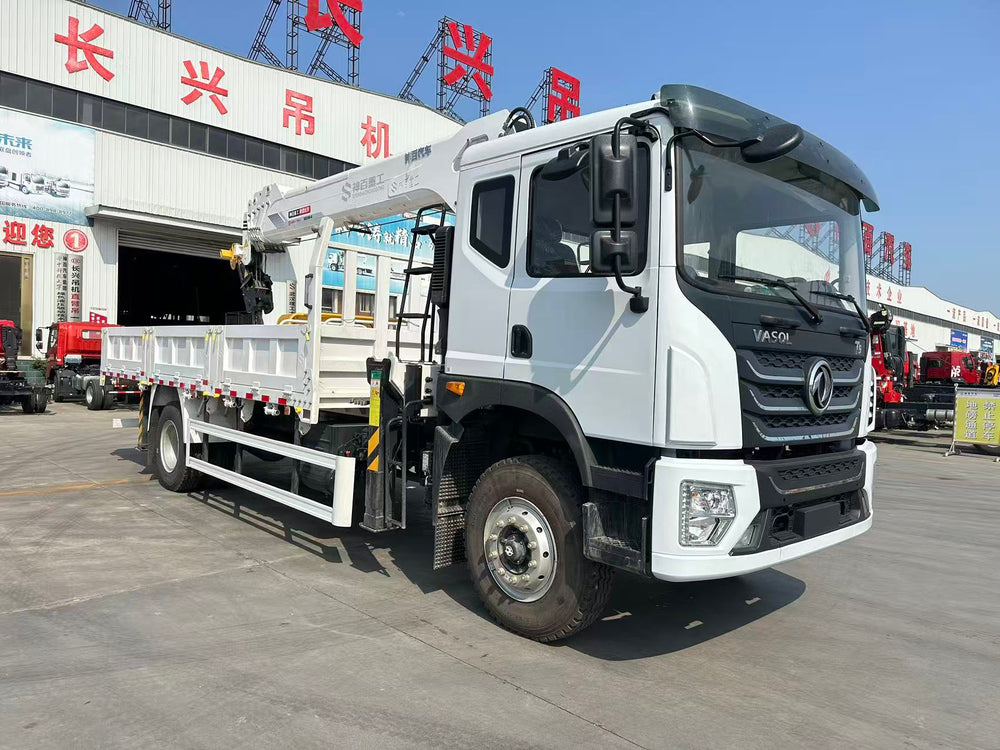

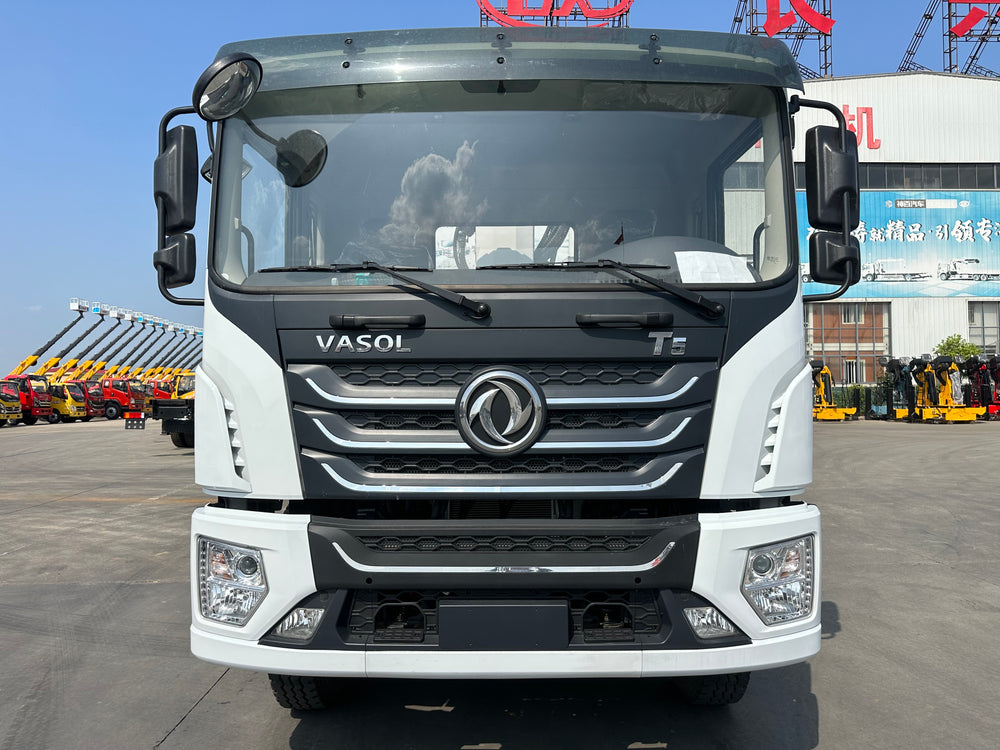

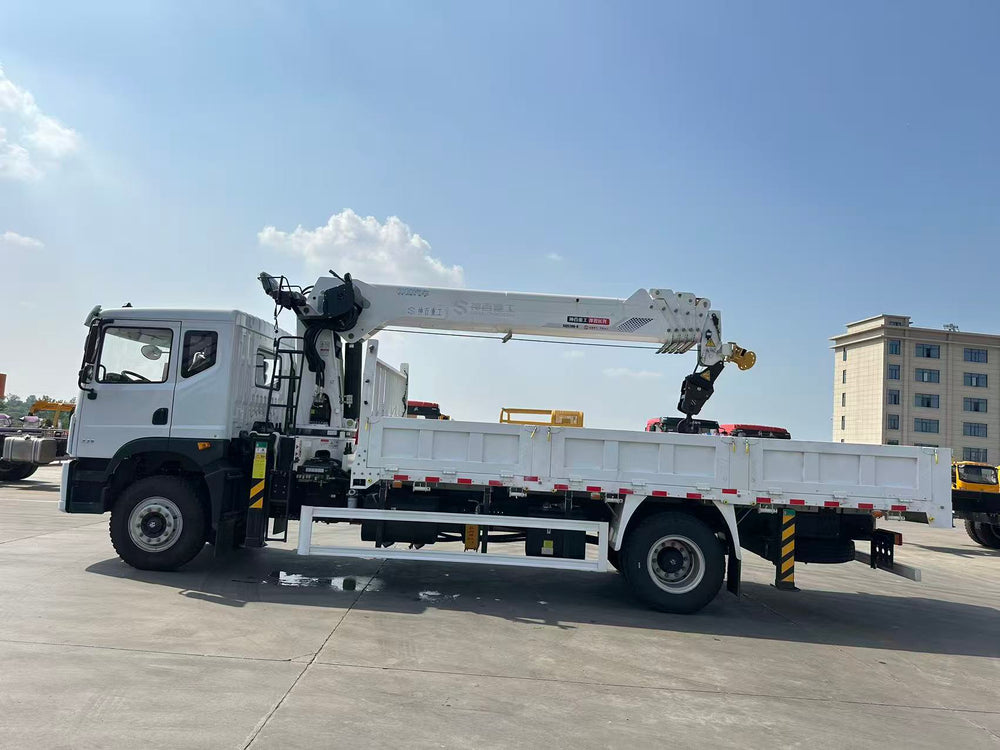

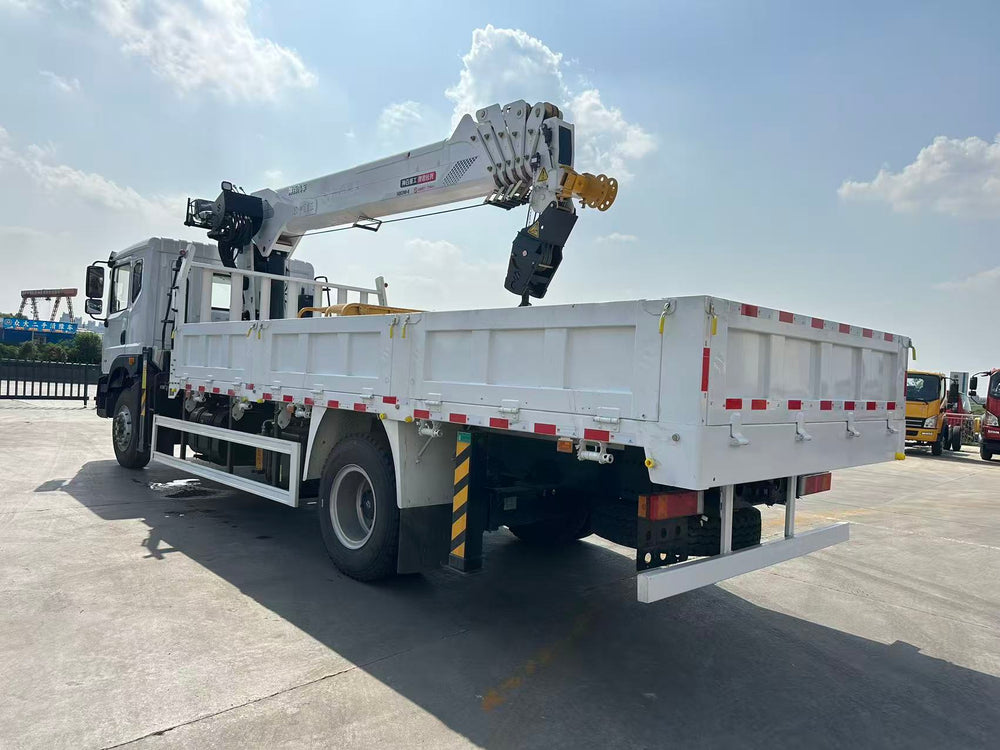

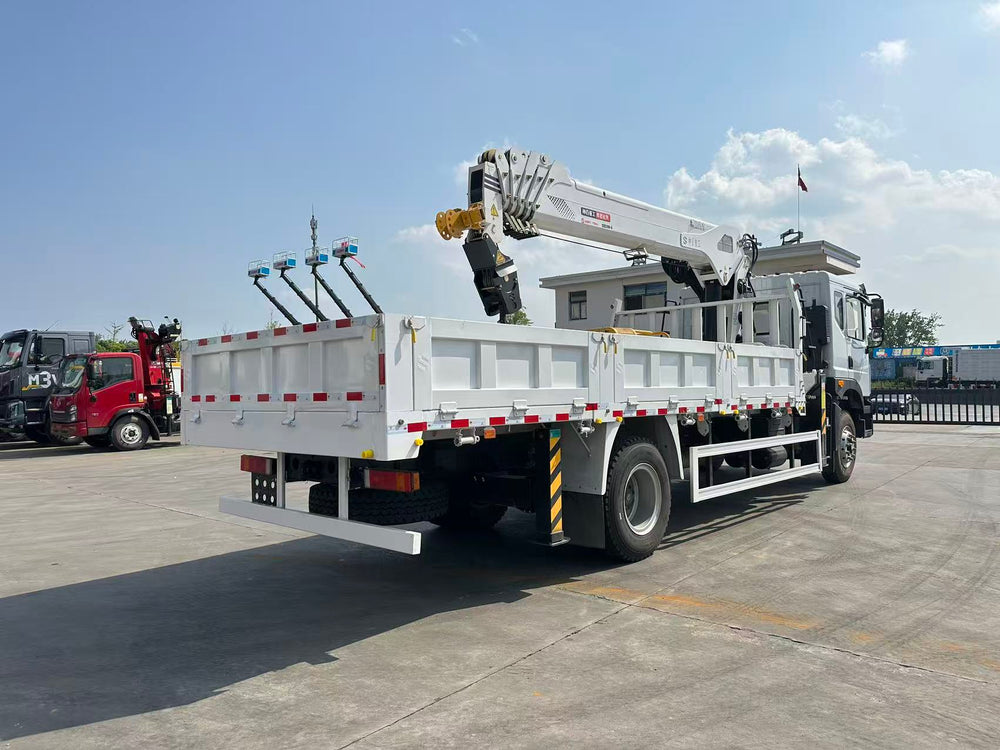

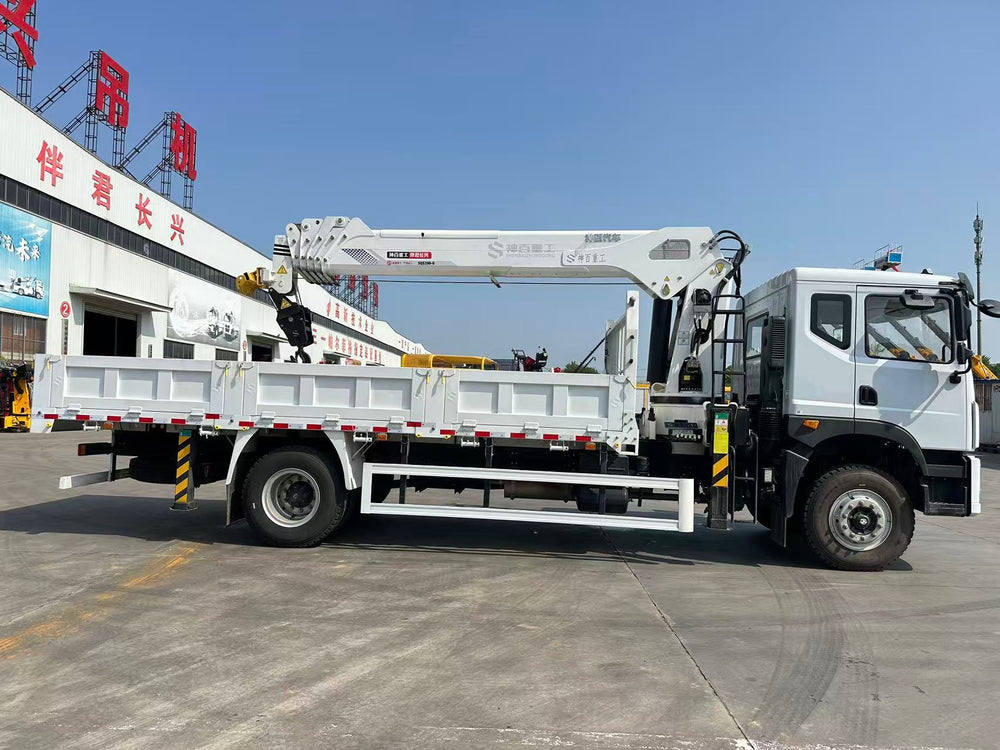

Dongfeng 8-ton straight boom truck-mounted crane

1 / 7

Dongfeng 8-ton straight boom truck-mounted crane

Overall vehicle size and performance
Total vehicle weight	18 tons
curb weight	10.8 tons
Rated effective load	6.8 tons
Overall vehicle dimensions	9000×2550×3700 mm
Cargo box dimensions	5700×2400×550 mm
Chassis parameters
Chassis Brand	Dongfeng
Driving type	4x2 left-hand drive
engine	Cummins B6.2NS6B230
horsepower	230 horsepower
Speed gearbox	8JS75C 8, with high/low speed gears
wheelbase	5300 mm
axis	5-ton front axle, 10-ton rear axle (reinforced)
Emission standards	Euro 6
Tire type and size	1000R20 (6 pieces)
fuel tank	200 liters
Top speed	105 km/h
other	Wide-body single/row-up seats, four-point suspension, factory air conditioning, central locking, power windows, ABS anti-lock braking system, air brakes, dashcam.
Crane parameters
Crane Model	SQ8.0A5
Maximum lifting capacity	8 tons
Maximum working radius	17.9 meters
Maximum lifting height	19.6 meters
boom type	5-section synchronous telescopic boom
Rotation angle	360° rotation
Crane weight	3.75–4.45 tons
Hydraulic oil tank	150 liters
Hydraulic system	Dual pump confluence, imported multi-way valve + high-pressure oil pump, equipped with radiator
Outboard support configuration	Front outrigger: Two-section composite square leg (large span); Rear outrigger: Single cavity
Operation Function	Aerial work seat + aerial remote throttle, one-button start/stop, automatic hook retraction, wireless remote control optional.
Optional configuration
Crane Additional Configuration	Wireless remote control, radiator, weighing instrument, brick clamp, wood grabber, work basket
Application scenarios	Municipal emergency repairs, seedling transplantation, building material hoisting, power/street lighting projects, equipment handling
